CH single stage
Stuart Turner CH 12-14 B Boostamatic 46349
In stock
- Established 1975
- Trusted by thousands of customers

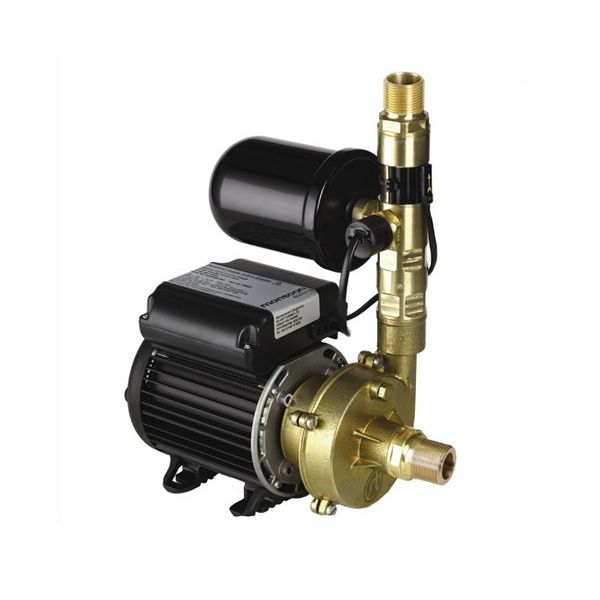

Stuart Turner CH single stage Boostamatic
The CH automatic Boostamatic range of single stage pumps feature horizontal suction and vertical delivery connections and are designed for high flow applications to provide a pressurised water supply from a break tank in either a positive or neagtive head application, as it does not rely on gravity flow to acitvate.
Application –
The CH single stage pumps can be used for lquid transfer, pressure boosting or distribution of clean, fresh water and other clean non aggressive liquid.
More about this product
Technical Specification
General
- Product code 46349
- Guarantee – 2 years
Features
- Pump type – Centrifugal
- Mechanical seal – EPDM / PTFE / Al. Oxide
Materials
- Pump body – Brass
- Impeller – Plastic
Features
- Flexible hoses – 2
- Run on timer – 3 secs
Performance
- Max head (closed valve) – 14 metres
- Performance @ 45 l/min – 12 metres
- Performance @ 90 l/min – 8 metres
- Max flow – 138 l/min
- Min static inlet pressure – 1 metres
- Max static inlet pressure – 6 metres
- Water temp – 4 min / 65 max
Connections
- G 1" male on pump
- Flexible hoses G 1 male x G 1 female x 300mm long
Motor
- Type – Induction, auto-reset thermal trip
- Duty rating – Continuous (S1)
Electrical
- Power supply – 230v/1ph/50Hz
- Power – 415 watts
-
data sheet PDFDownload
-
dimensions PDFDownload
-
manual PDFDownload
-
performance PDFDownload
