Aquaboost CAT 5
Stuart Turner Aquaboost iBoost +200 CAT 5 46714
In stock
- Established 1975
- Trusted by thousands of customers

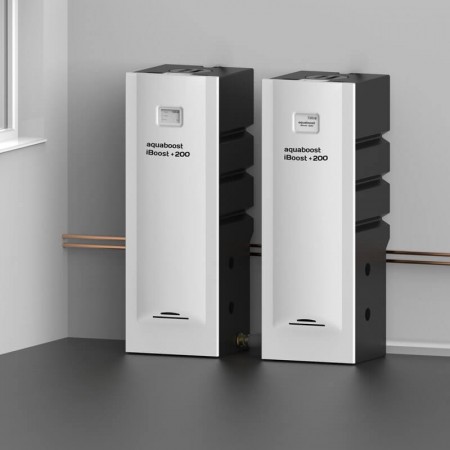

Stuart Turner Aquaboost iBoost + (tank only no pump)
The iBoost +200 CAT 5 water storage tank effectively doubles the capacity of an iBoost F200 CAT 5 or V200 CAT 5 unit from 200 litres to 400 litres.
Features
- Simple installation, connection to main iBoost unit tank can be made through the tank sides with the kit supplied or from the back (additional parts required)
More about this product
Technical Specification
| General | |
| Product code | 46714 |
| Guarantee | 3 years |
| Features | |
| Fluid risk compatibility | CAT 5 |
| Air gap | Type AB |
| Performance | |
| Maximum inlet pressure (tank fill valve) | 7 bar (700 kPa) |
| Maximum static outlet head | 15 metres |
| Ambient air temperature (Min – Max) | 4 °C – 30 °C |
| Water tank | |
| Nominal size | 220 litres |
| Usable capacity | 200 litres |
| Fill rate | 20 l/min* |
| Connections | |
| Cold water inlet | G ½ male |
| Overflow (compression fitting) | G ¾ |
| Materials | |
| Break tank | Polyethylene |
| Front panel | Acrylic capped ABS |
| Physical | |
| Depth | 529 mm |
| Width | 536 mm |
| Height | 1504 mm |
| Empty weight | 35 Kg |
| Filled weight | 235 Kg |
*Assumes 1 bar inlet pressure.
| Product Variants | |
| Part no | Description |
| 46677 | Aquaboost iBoost F200-100-45 CAT 5 |
| 46713 | Aquaboost iBoost V200-100-45 CAT 5 |
| 46714 | Aquaboost iBoost +200 CAT 5 |
| 46692 | ABF F50-80-35 CAT 5 |
| 46693 | ABF F100-80-35 CAT 5 |
-
Brochure PDFDownload
-
data sheet PDFDownload
-
instructions PDFDownload
-
Unvented PDFDownload
