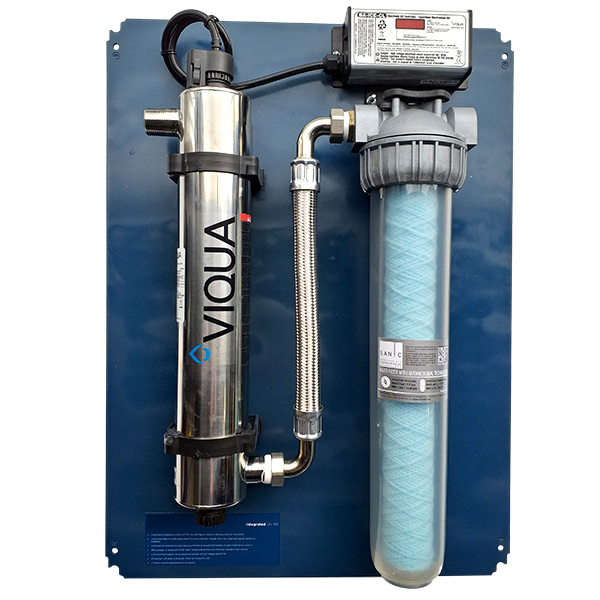

Powertank Integrated UV System - For Variable Speed Units

Our Price £825.42 Inc Vat £687.85 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

Powertank Integrated UV System – For Fixed Speed Units
INSTALLATION & USE

UV systems deactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, and harmful bacteria like Legionalla & E.Coli which may be present in some incoming water supplies.

Full Description

More about this product

Full Description

STAGE 1: FINE SEDIMENT REMOVAL
Stage 1 is a 5 micron sediment filter cartridge with antimicrobial protection provided by a silver based antimicrobial agent included in the plastic matrix with a specific technology. The filter housing also has antimicrobial abilities to prevent the build up of bacteria and algae within the housing.

STAGE 2: ULTRA VIOLET DISINFECTION UNIT
Stage 2 is a Viqua UV disinfection system for the purposes of inactivation of bacteria and viruses in the incoming water supply. This UV system has an integral countdown timer to indicate when the UV lamp needs to be replaced. UV lamps degrade over time and must be replaced every 12 months.

BENEFITS TO UV DISINFECTION

Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification. Always use Viqua genuine replacement lamps and sleeves.
The system is simple to maintain and service allowing for easy lamp replacement.
Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
The controller visually displays the remaining lamp life and will go into alarm if the lamp fails. Monitored systems are equipped with a UV sensor which provides a continuous readout of UV intensity.
The controller has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant.
Monitored systems allow for the installation of an optional solenoid valve which will stop the flow of water through the chamber should the UV performance fall below a safe level.

CONSTRUCTION

Connection Size: 1″ BSP
Power Consumption: 60W

PERFORMANCE RANGE

Flow Rates: 15 GMP (68 lpm)
Maximum Operating Pressure: 6 Bar
Ambient Water Temperature: 2-40°C (36-104°F)

*Max Flow Rate @ 16mj/cm2: 7.8m3/hr
*Max Flow rate @ 30mj/cm2: 4.2m3/hr

Downloads

Brochure PDF
Download
manual PDF
Download
