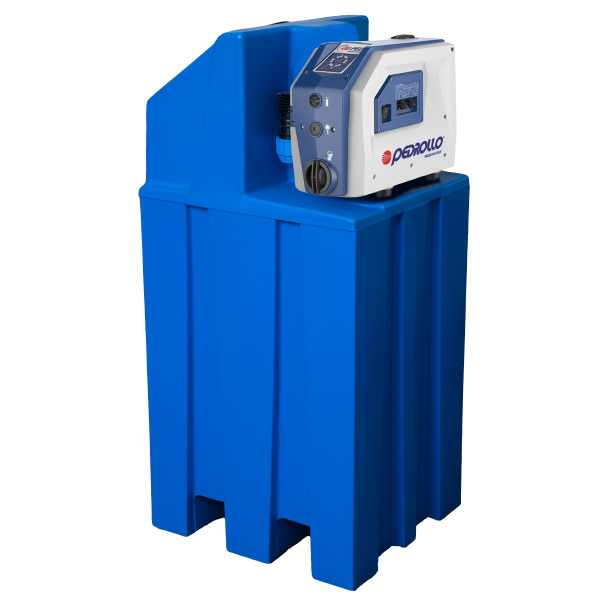

Powertank DG PED 3 200 litre variable Speed Water Booster

Our Price £1,587.12 Inc Vat £1,322.60 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

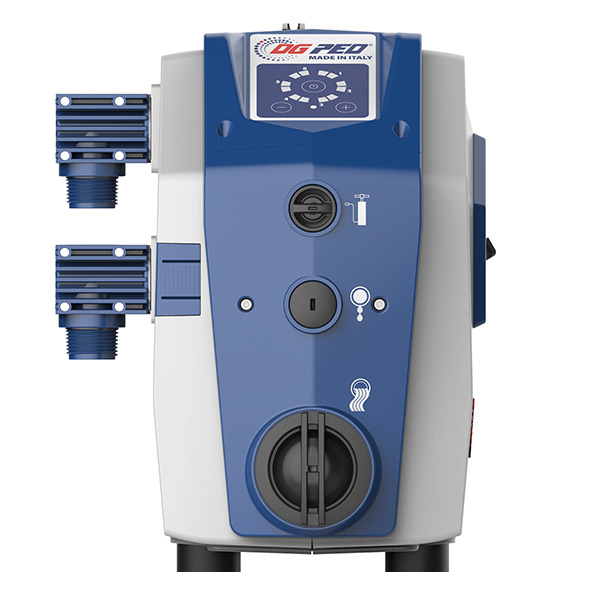

The Powertank DG PED systems are variable speed pump and tank units designed with the consumer in mind. A simple push-button interface with LED display provides 2 options; ‘+’ to increase pressure and ‘–‘ to decrease pressure making it very difficult to hinder the operation of the unit. Like all the other Powertanks in the range it automatically starts and stops the pump when a drop in pressure is sensed i.e a tap is opened and closed.

Full Description

More about this product

Full Description

Key Features:

– Non-corrosive holding tank (WRAS approved material)
– Pre-fitted WRAS approved fill valve
– Minimal installation requirement
– Intuitive User Interface
– Adjustable digital display flow controller
– Dry run protection with auto-restart (time delay)
– AF Air gap (AB Air gap Optional)
– Suitable up to Fluid Category 4 (CAT5 Option available)

System Connections:

Inlet: ½” BSP
Outlet: 1” BSP
Over flow: 1 1/4” BSP
Drain Off: 1” BSP

Rotating Inlet/Outlet Connector

Technical Info:

DG PED 3
Power supply: 240 volt, 50Hz 240 volt, 50Hz
Power: 0.75kW
Mains Power Cable: 1.3m x 1.5mm² 3 core cable

DG PED 5
Power supply: 240 volt, 50Hz 240 volt, 50Hz
Power: 1.1kW
Mains Power Cable: 1.3m x 1.5mm² 3 core cable

The DG-PED 3 will produce

58 litres per min @ 3 Bar

The DG PED 5 will produce

92 litres per min @ 3 Bar
