Powertank COMPACT 125 variable speed - 2600080

In stock

Established 1975
Trusted by thousands of customers

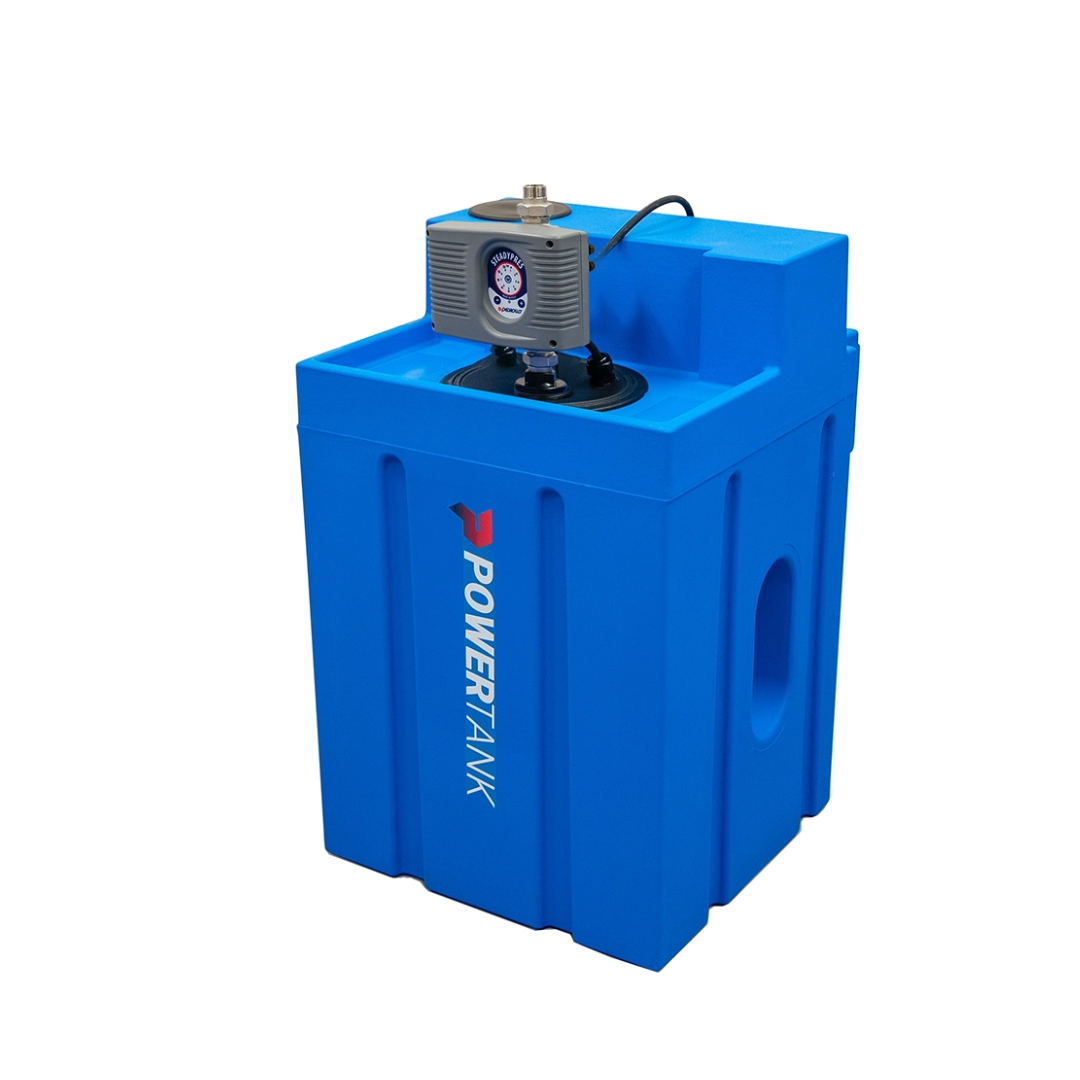

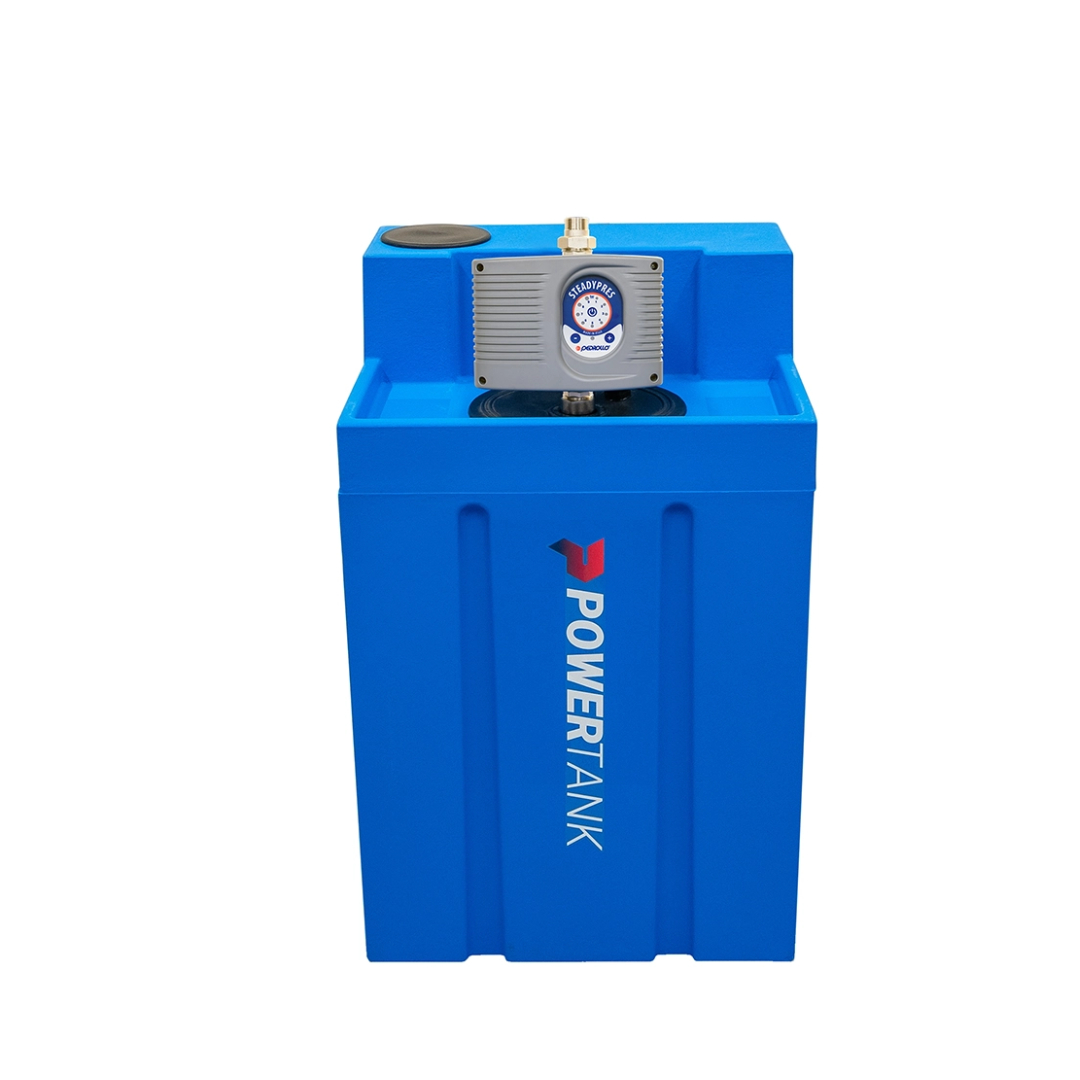

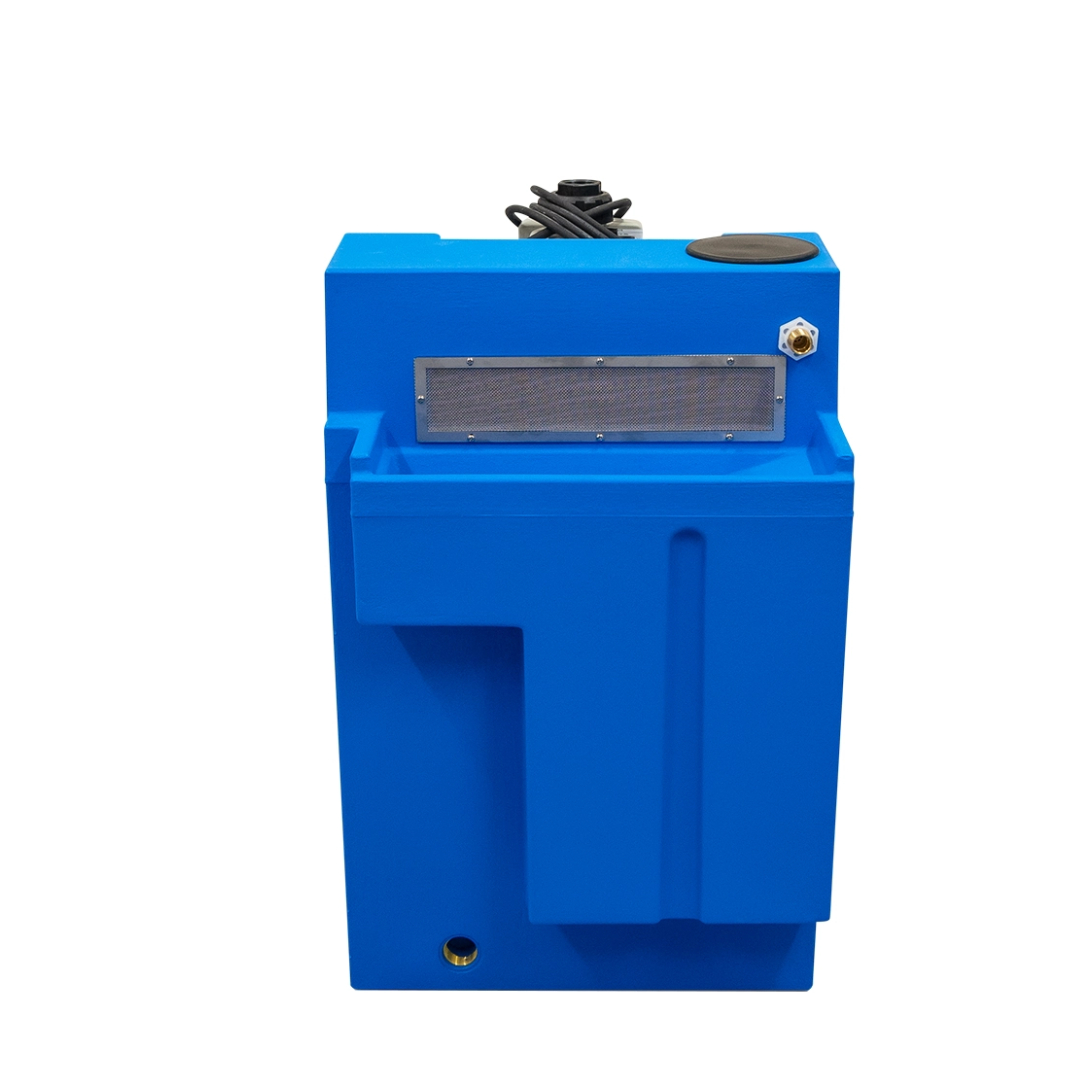

Powertank COMPACT – Variable Speed Whole House Water Pressure Booster: 125ltr

The Powertank COMPACT Water Pressure Booster has been specifically designed for smaller properties with low water pressure and flow and where space is at a premium e.g. apartments, cottages, townhouses. Fitting into the space of a standard kitchen unit, the Powertank COMPACT is a similar size to a washing machine so can be hidden away behind a cupboard door. The electronic controller automatically starts and stops the pump when a drop in pressure is sensed i.e. a tap is opened and closed.

Key Features:

– Non-corrosive holding tank (WRAS approved material)
– Designed for potable water
– Pre-fitted WRAS approved fill valve
– Integral overflow weir
– Minimal installation required
– Adjustable digital display flow controller (Variable Speed Option)
– Dry run protection with auto restart (time delay)
– AB Air gap
– Suitable for up to Fluid Category 5

System Connections:

Inlet: 1/2″ BSP
Outlet: 1″ BSP
Overflow: 1 1/2″
Drain Off: 1″ BSP

If there are any special Inlet or Overflow requirements please let us know prior to placing an order.

Technical Info:

Power Supply: 240V, 50Hz
Controller: Steadypres MT07 supplied with 2ltr pressure vessel
Mains Power Cable: 2m x 1mm ² 3 core fitted with 13 amp fuse mains plug
Current Input: 5.2 amp
Useable Water Volume: 125L
Tank Weight Empty: 33kg
Tank Weight Full 1ltr = 1 kg plus weight of empty tank
Access Cover Diameter: 168mm

The Compact will produce

65 litres per min @ 3 Bar

NOTE: A minimum of 0.5 bar incoming pressure is required for our Standard Fill Valve

You want:

* Water on demand
* More pressure and flow from your shower
* Good flow of pressure to multiple water outlets
* Fully Automatic Operation
* Low Maintenance
* Easy Fit and Commission
* Very Quiet compared to other Systems

BENEFITS of the Powertank Range of Water Pressure boosters:

Water on Demand
Good Pressure & Flow to all Outlets*
Low Maintenance
Very Quiet Operation
Energy Saving Options
Installer Friendly Design
Fully Automatic Operation
In Built Pump Protection

* Subject to being correctly plumbed. Shared pipework may affect pressures.

Full Description

More about this product

Full Description

Key Features

Non-corrosive holding tank (WRAS approved material)
Pre-fitted WRAS approved fill valve
Integral overflow weir
Minimal installation required
Adjustable digital display flow controller
Dry run protection with auto restart (time delay)
AB Air gap
Suitable for up to Fluid Category 5
CE Certified Product

Additional Information

Connections & Size

Inlet: ½” BSP
Outlet: 1” BSP
Overflow: 1 ½”
Drain Off: 1” BSP
Variable Speed Option
- 240 volt, 50Hz
- Steadypress M/T 07 supplied with 2ltr pressure vessel
- 3.1 amp
- 2mtr x 1mm² 3 core fitted with 5 amp fuse main plug
- 33kg
- 1ltr = 1 kg plus weight of empty tank
- 168mm
