Powertank COMPACT
Powertank COMPACT 125 fixed speed – 2600070
In stock
- Established 1975
- Trusted by thousands of customers

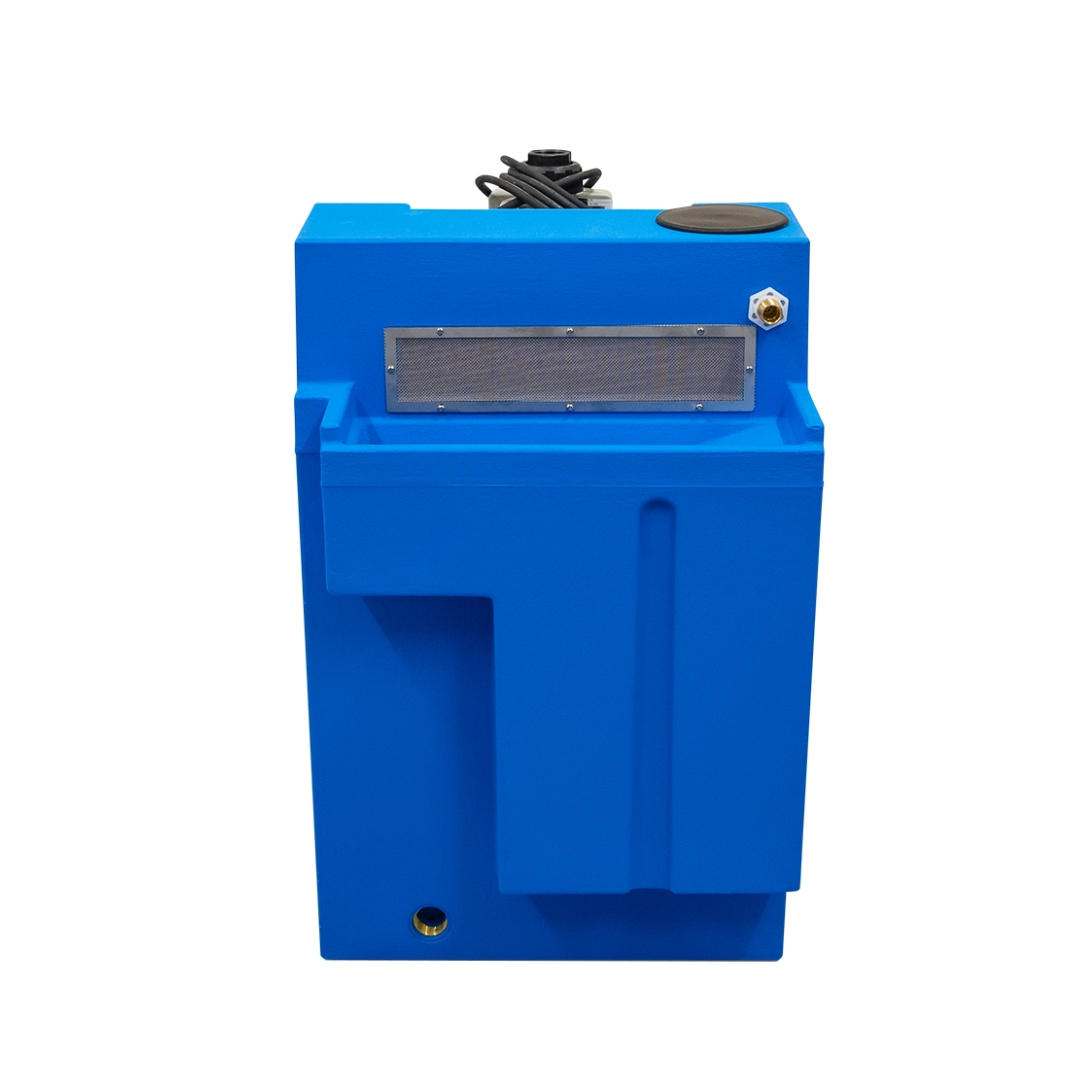

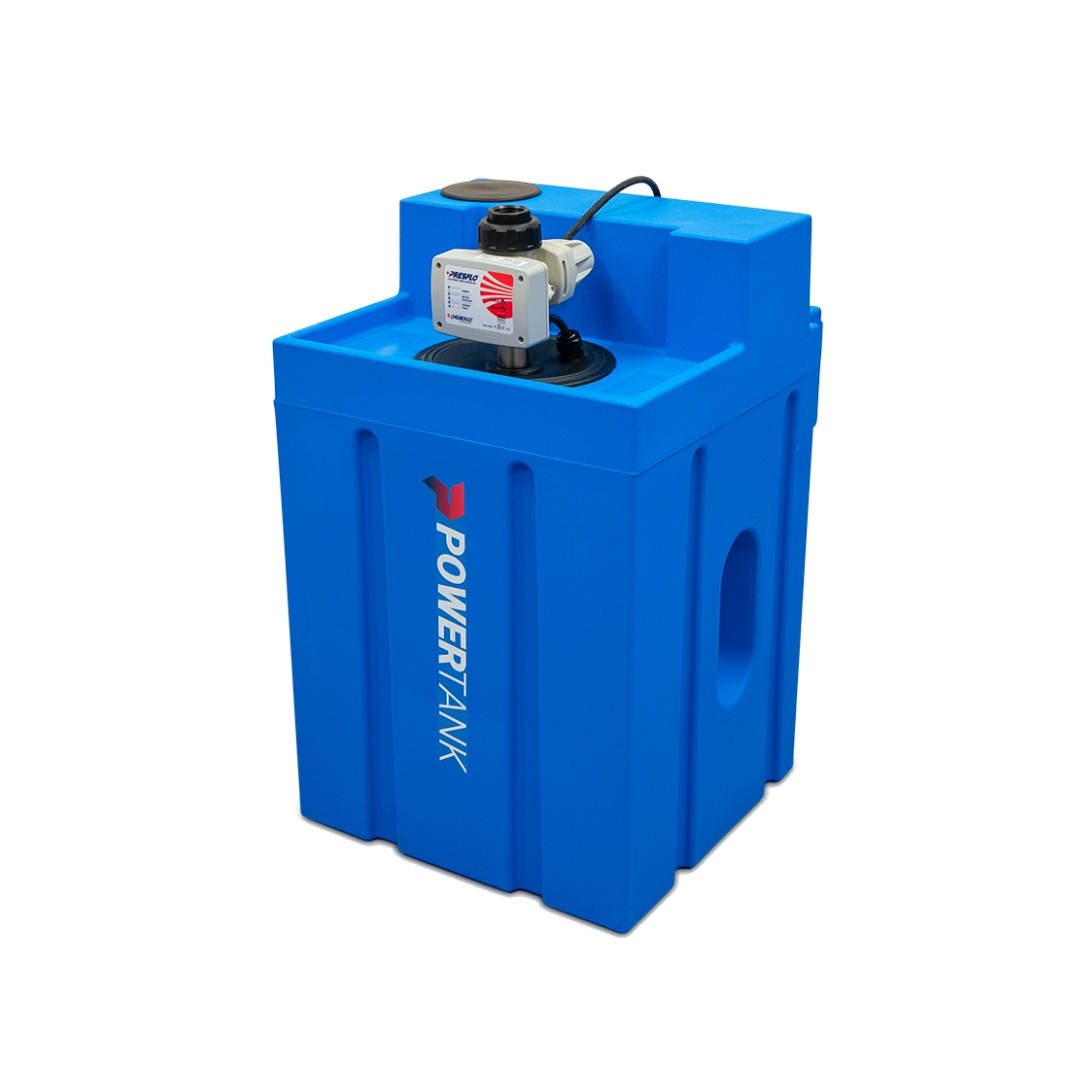

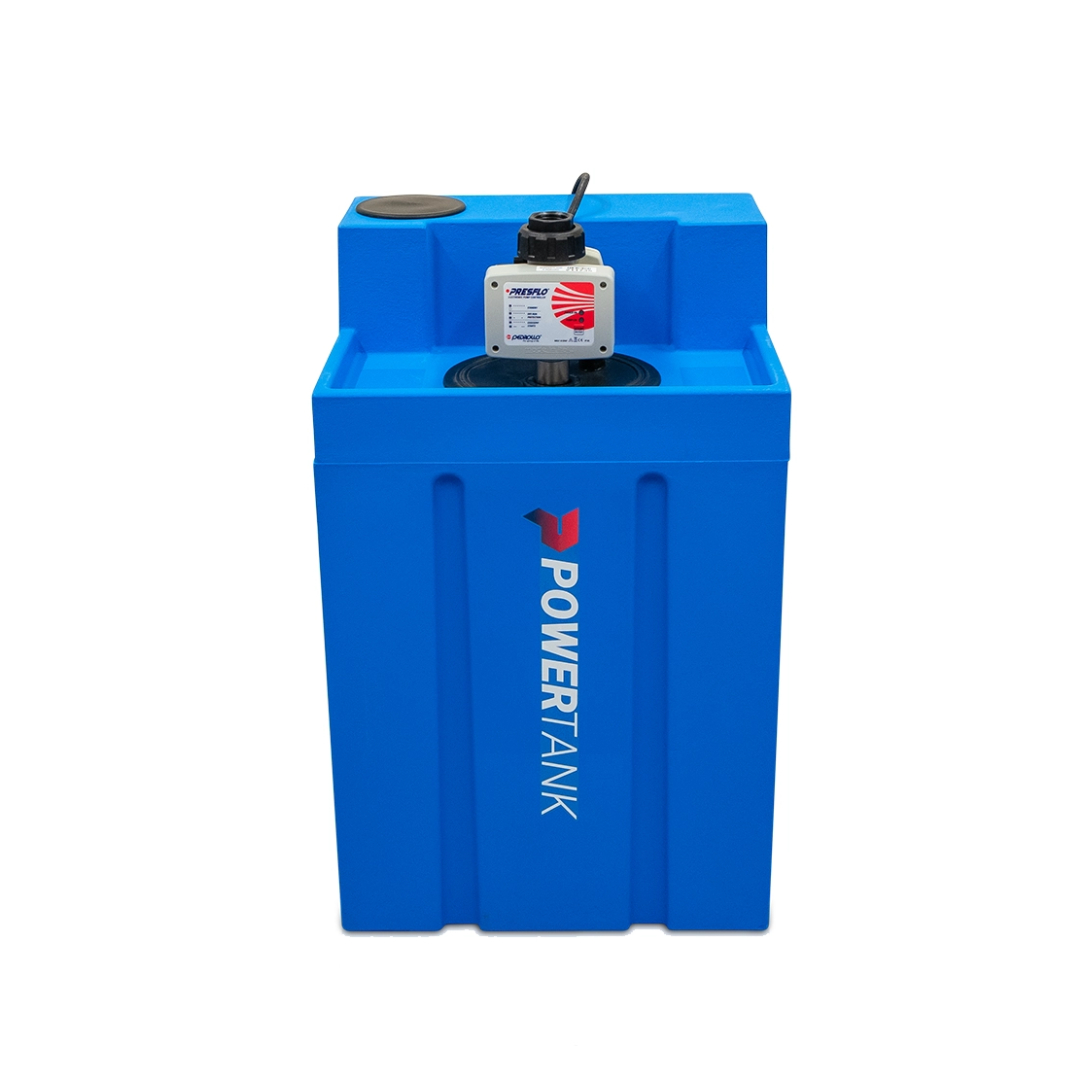

Powertank COMPACT – Fixed Speed Whole House Water Pressure Booster: 125ltr
The Powertank COMPACT has been specifically designed for smaller properties with low water pressure and flow and where space is at a premium e.g. apartments, cottages, townhouses. Fitting into the space of a standard kitchen unit, the Powertank COMPACT is a similar size to a washing machine so can be hidden away behind a cupboard door. The electronic controller automatically starts and stops the pump when a drop in pressure is sensed i.e. a tap is opened and closed.

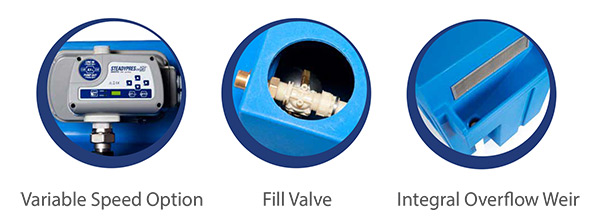

Key Features:
– Non-corrosive holding tank (WRAS approved material)
– Designed for potable water
– Pre-fitted WRAS approved fill valve
– Integral overflow weir
– Minimal installation required
– Adjustable digital display flow controller (Variable Speed Option)
– Dry run protection with auto restart (time delay)
– AB Air gap
– Suitable for up to Fluid Category 5
System Connections:
Inlet: 1/2″ BSP
Outlet: 1″ BSP
Overflow: 1 1/2″
Drain Off: 1″ BSP
If there are any special Inlet or Overflow requirements please let us know prior to placing an order.
Technical Info:
Power Supply: 240V, 50Hz
Controller: Presflo 1.5 Controller supplied with 2ltr pressure vessel
Mains Power Cable: 2m x 1mm ² 3 core fitted with 13 amp fuse mains plug
Current Input: 3.4 amp
Useable Water Volume: 125L
Tank Weight Empty: 27kg
Tank Weight Full 1ltr = 1 kg plus weight of empty tank
Access Cover Diameter: 168mm
The Compact will produce
40 litres per min @ 3 Bar
NOTE: A minimum of 0.5 bar incoming pressure is required for our Standard Fill Valve
You want:
* Water on demand
* More pressure and flow from your shower
* Good flow of pressure to multiple water outlets
* Fully Automatic Operation
* Low Maintenance
* Easy Fit and Commission
* Very Quiet compared to other Systems
BENEFITS of the Powertank Range of Water Pressure boosters:
Water on Demand
Good Pressure & Flow to all Outlets*
Low Maintenance
Very Quiet Operation
Energy Saving Options
Installer Friendly Design
Fully Automatic Operation
In Built Pump Protection
* Subject to being correctly plumbed. Shared pipework may affect pressures.
More about this product
Key Features
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- Integral overflow weir
- Minimal installation required
- Adjustable digital display flow controller
- Dry run protection with auto restart (time delay)
- AB Air gap
- Suitable for up to Fluid Category 5
- CE Certified Product

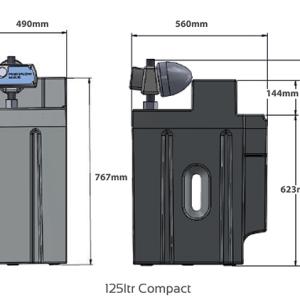

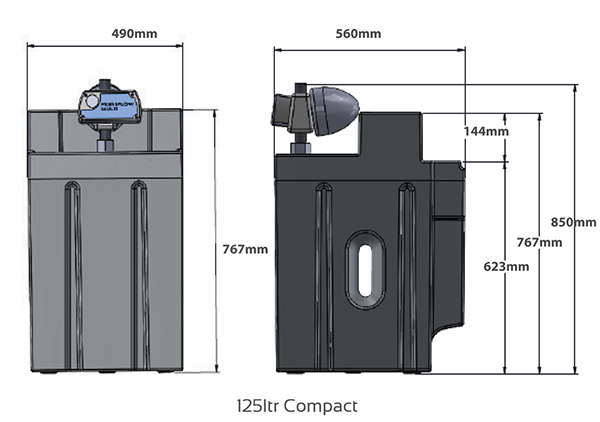

Connections & Size
- Inlet: ½” BSP
- Outlet: 1” BSP
- Overflow: 1 ½”
- Drain Off: 1” BSP
-
Fixed Speed Option
- 240 volt, 50Hz
- Presflo 1.5 supplied with 2ltr pressure vessel
- 3.4 amp
- 2mtr x 1mm² 3 core fitted with 5 amp fuse main plug
- 27kg
- 1ltr = 1 kg plus weight of empty tank
- 190mm
