The Lowara Sekamatik series is a comprehensive range of wastewater lifting stations for the collection and pressurization of rain/clean/grey water and sewage for residential and commercial building applications.

Sekamatik lifting stations come all ready as complete units, as they include all necessary components such as tank, pumps, piping and the controls. All you need at once.

Full Description

More about this product

Full Description

Sekamatik 300

Overview.

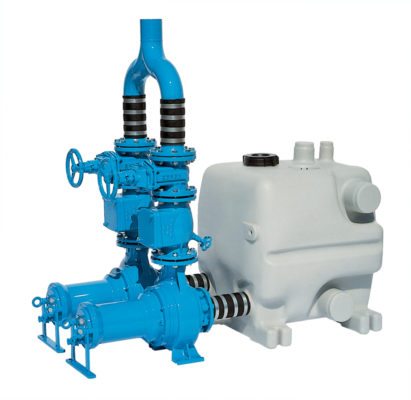

The Sekamatik 400/800 range of compact sewage disposal units is suitable for pumping sewage and wastewater from areas below the sewer level (see DIN EN 12056). With their large tank volumes and high performance submersible wastewater pumps they are perfect for large private, commercial or public buildings, hospitals, schools etc. The compact design allows installation with minimum space available. The horizontal pump position with the straight-thru tank-pump discharge connection eliminates elbows. The tanks are available with 400 and 800 liters volume.

DIN EN 12050-1: Conformity and design approved and controlled by LGA.
Pumped liquid: Clear water or drainage water, wastewater or sewage containing soft solids.
Max. liquid temperature: 35°C, short term up to 60°C.
Operation: Intermittent.

Additional Information

Specification –

Flood protected single or twin pump lifting station consisting of:

Collecting tank: Odour and gas tight tank.

Plastic tank: Total volume 400 lt, tandem installation with two tanks 800 lt volume.

Inlets:

• Horizontal: DN 150 (3x).

• Vertical: DN 100.

Air vent DN 70. Connection for diaphragm pump DN 50. Cleaning cover with screw cap. Connections for pneumatic

level control and float switch.

Pumps: Single stage sewage pumps. Horizontal installation, discharge vertical.

Impellers: Enclosed single-vane impeller or vortex impeller.

Motors: Fully submersible, pressure tight electric motors 400-415 V / 3 Ph. Thermal sensors embedded in the

winding. Insulation class H. Degree of protection IP 68. Large diameter stainless steel rotor shaft, pre-lubricated

bearings.

Seals: Combination of two mechanical seals (silicon-carbide) in a separate oil chamber. Oil inspection from outside.
