Lowara Prefabricated Lifting Stations – MICRO 6 3ph
Lowara MICRO 6 MINIVX F-T/AN SL/BV 3ph 400v – 109439130GQ1BCX
In stock
- Established 1975
- Trusted by thousands of customers

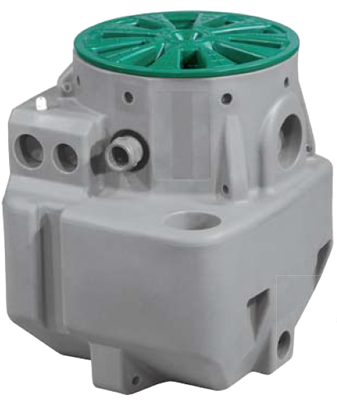

MICRO 6 Series
MICRO 6 and MICRO 6+6 Series Prefabricated lifting station for wastewater according to EN 12050-1&2 standard.
More about this product
Impeller – Vortex
Weight – 69kg
Versatile
– Micro 6 version 270 litre tank (Single pump).
– Micro 6+6 version 550 litre tank (Dual pump).
– Tank made from 100% recyclable polyethylene, highly resistant to chemical attack and UV rays.
– Airtight anti-pollution tank, to according to standard EN 12050.
Easy to install
– Choice of positions allows best-fit location for inlet connection.
– Micro 6 and Micro 6+6 can be installed on the ground or buried in a
suitable structure.
– installation is quick and easy: for the single-phase versions you
just connect the pipes and the electrical cables; for the three-phase
versions you also need to connect the control panel.
– The Micro 6 and Micro 6+6 are provided with side handles for ease
of handling.
– Pre-installed delivery pump and unions.
Easy to use
– Angled design of tank base makes for less retention and easier cleaning.
– Operates fully automatically with low maintenance.
Dependability and servicing
– Tried-and-tested pump technology.
– Pump quick and easy to remove with ring nut located near the cover.
Standard version
– Standard version equipped with sliding device, delivery pipes and ball check valve.
Accessories
– Alarm kit.
– Manual pump + seal.
– Seals kit.
– Control panel.
Three phase 3 x 400v provided with:
1 off pump without floatswitch
1 off control panel type QDR plus beacon
2 off float switch with cable length 10 metres
