Grundfos Scala1 & 2 Home Booster
Grundfos Scala 2 3-45 230v 98562865
In stock
- Established 1975
- Trusted by thousands of customers
2 year Grundfos Warranty

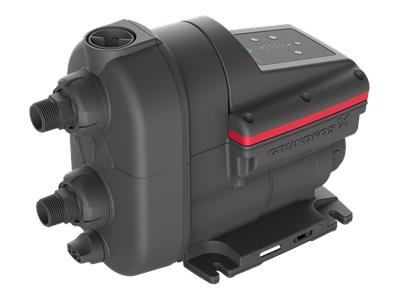

Grundfos Scala 2 is a fully integrated variable speed water booster pump providing perfect water pressure in all taps at all times – even with multiple taps and showers running at the same time. It packs pump, motor, tank, sensor, drive and non-return valve into one compact unit.
With its intelligent pump control, Scala 2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, Scala2 even offers one of the lowest noise levels of any booster on the market.
Easy to install guide –Â
uk.grundfos.com/training-events/ecademy/all-topics/scala2/Easy-installation.html
More about this product
SCALA 2 3-45 AÂ 98562865
Grundfos SCALA 2 is a fully integrated, self-priming, compact waterworks for pressure boosting in domestic applications. SCALA 2 incorporates integrated speed control enabling the keeping of the perfect pressure at the taps, meaning that the pump performance will increase with increasing demand.
SCALA 2 can be installed in three easy steps:
1. Connect the pipes.
2. Prime the pump.
3. Plug the pump into the power outlet and the pump will start.
Grundfos SCALA2 has all the components necessary to ensure a comfortable pressure:
- intelligent controller
- integrated speed-controlled drive
- integrated tank
- integrated sensors
- integrated non-return valves.
As it is self-priming, the SCALA 2 is able to pump water from a level below the pump. Provided it is filled with water, the pump is able to lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.
If exposed to dry running, water shortage or excessive temperature, blocked pump, for example in case of seizure or overload, the pump will stop automatically, thus preventing a motor burnout.
The pump features an automatic reset function. In case of dry running or similar alarm, the pump will stop. Restarting will be attempted every 5 minutes 8 times, there after new restart attempt will occur every 24 hours. The automatic reset function can be deactivated.
Thanks to its hydraulic design, permanent magnet motor and water cooling, the pump is extremely low-noise, 47 dB(A) in typical use, which makes it suitable for indoor as well as outdoor use. Max noise level at full load are 53 dB(A).
The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, causing less wear on the pump.
SCALA 2 require no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust.
-
Tech Sheet PDFDownload
-
data sheet PDFDownload
