Grundfos JP4-54 booster set horizontal 230v 99463912

Our Price £727.56 Inc Vat £606.30 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

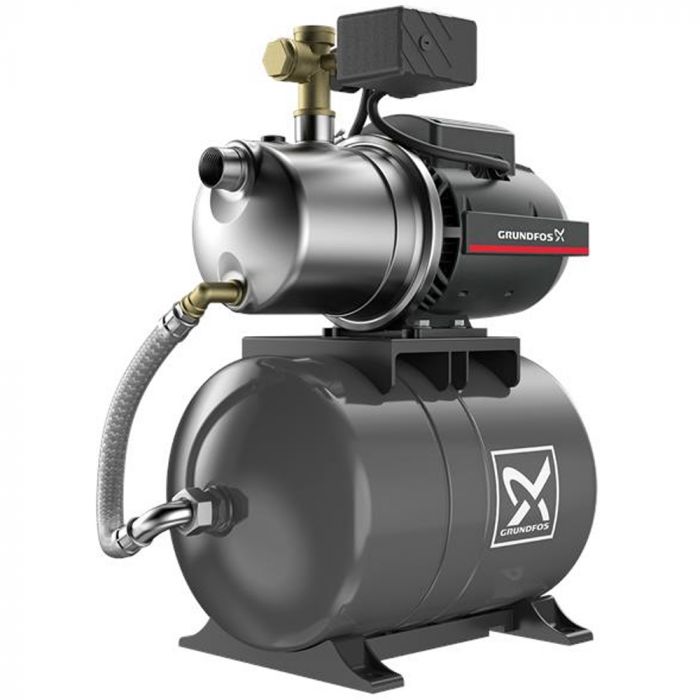

Grundfos JP 4-54 PT-H

Grundfos JP 4-54 PT-H consist of a Grundfos JP pump, a pressure switch, a pressure gauge and a Grundfos GT-H 20-litre horizontal diaphragm pressure tank. The booster set features a dual outlet selection for easy installation and a pressure tank to reduce water hammer in the pipework.

The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.

The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.

Full Description

More about this product

Full Description

Liquid:
Pumped liquid:		Water
Liquid temperature range:		0 .. 40 °C
Selected liquid temperature:		20 °C
Density at selected liquid temperature:		998.2 kg/m³

Technical:
Rated flow:		4 m³/h
Primary shaft seal:		BBVP
Approvals on nameplate:		CE,EAC
Curve tolerance:		ISO9906:2012 3B
Rated driver speed:		2800 rpm

Materials:

Pump housing:		Stainless steel
		EN 1.4301
		AISI 304
Impeller:		Composite

Installation:
Range of ambient temperature:		0 .. 40 °C
Maximum operating pressure:		6 bar
Maximum permissible inlet pressure:		1 bar
Pump inlet:		G1
Pump outlet:		G1

Electrical data:
Power input – P1:		1130 W
Rated power – P2:		0.746 kW
Mains frequency:		50 Hz
Rated voltage:		1 x 230 V
Rated current:		5.1 A
Starting current:		17.8 A
Capacitor size – run:		16 µF/450 V
Enclosure class (IEC 34-5):		IP44
Insulation class (IEC 85):		F
Type of cable plug:		SCHUKO

Others:
Net weight:		11 kg
Gross weight:		12 kg
Shipping volume:		0.026 m³
