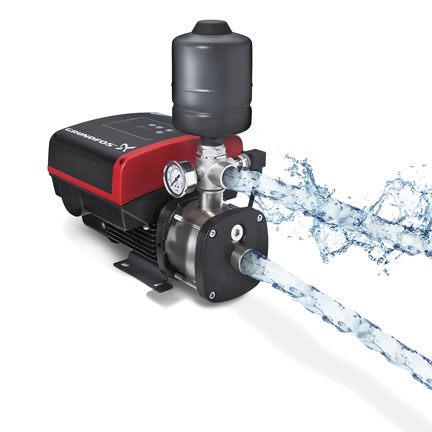

Grundfos CMBE Variable Speed 230V
Grundfos CMBE 3-62 I-U-C-D-D-A 98374693
In stock
- Established 1975
- Trusted by thousands of customers
The Grundfos CMBE 3-62 is a compact, reliable, and energy-efficient pressure-boosting system designed for water supply in domestic, agricultural, and light commercial applications. It combines a Grundfos CM (centrifugal multistage) pump with an integrated variable speed drive (Grundfos’ intelligent motor technology). Here’s a detailed breakdown of the system:
Key Features:
- Model Details:
- CMBE: Stands for “Compact Multistage Booster with Electronics.”
- 3-62: Refers to the pump size and performance characteristics.
- Variable Speed Control:
- The integrated variable speed drive allows the pump to adjust its speed automatically based on water demand, ensuring consistent water pressure regardless of variations in usage.
- Reduces energy consumption compared to traditional constant-speed pumps.
- Flow Rate and Pressure:
- Can handle medium to high flow rates, making it suitable for applications requiring significant water distribution.
- Provides consistent pressure even in multi-story buildings or locations with fluctuating water supply conditions.
- Compact Design:
- The unit is designed to be space-saving, allowing for easy installation in homes, farms, or small commercial buildings.
- Built-in Safety Features:
- Dry-running protection: Prevents damage if the pump runs without water.
- Overload protection: Protects the motor from electrical issues.
Applications:
- Domestic Use: Boosting water pressure in residential homes for showers, faucets, and irrigation.
- Agricultural Use: Supporting water supply for small-scale farming or irrigation systems.
- Commercial Use: Providing water supply to small offices, schools, or businesses.
Advantages:
- Energy efficiency due to variable speed technology.
- Low noise operation.
- Easy to install and maintain.
- Durable construction with high-quality materials like stainless steel components.
More about this product
Specifications
| Product name | CMBE 3-62 I-U-C-D-D-A |
| Product No | 98374693 |
| EAN number | 5711493909330 |
| Technical | |
| Pump speed on which pump data are based | 3780 rpm |
| Rated flow | 4.2 m³/h |
| Rated head | 45.2 m |
| Impellers | 4 |
| Primary shaft seal | AVBE |
| Approvals and markings | CE,MORO |
| Curve tolerance | ISO9906:2012 3B |
| Model | A |
| Return valve | YES |
| Start pressure | Integrated Frequency converter |
| Materials | |
| Pump housing | Stainless steel |
| Pump housing | DIN W.-Nr. 1.4301 |
| Pump housing | AISI 304 |
| Impeller | Stainless steel |
| Impeller | DIN W.-Nr. 1.4301 |
| Impeller | AISI 304 |
| Rubber | EPDM |
| Installation | |
| Maximum ambient temperature | 55 °C |
| Flange standard | WHITWORTH THREAD RP |
| Pump inlet | Rp 1 |
| Pump outlet | Rp 1 |
| Liquid | |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 60 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Electrical data | |
| Rated power – P2 | 1.1 kW |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 1 x 200-240 V |
| Maximum current consumption | 6.70-5.60 A |
| p max system | 10 bar |
| Rated speed | 360-4000 rpm |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Type of cable plug | NONE |
| Mains cable | 1.5 m |
| Tank | |
| Tank volume | 2 l |
| Others | |
| Net weight | 16.9 kg |
| Gross weight | 27 kg |
| Config. file no | 98390434 |
-
data sheet PDFDownload
-
sales sheet PDFDownload
