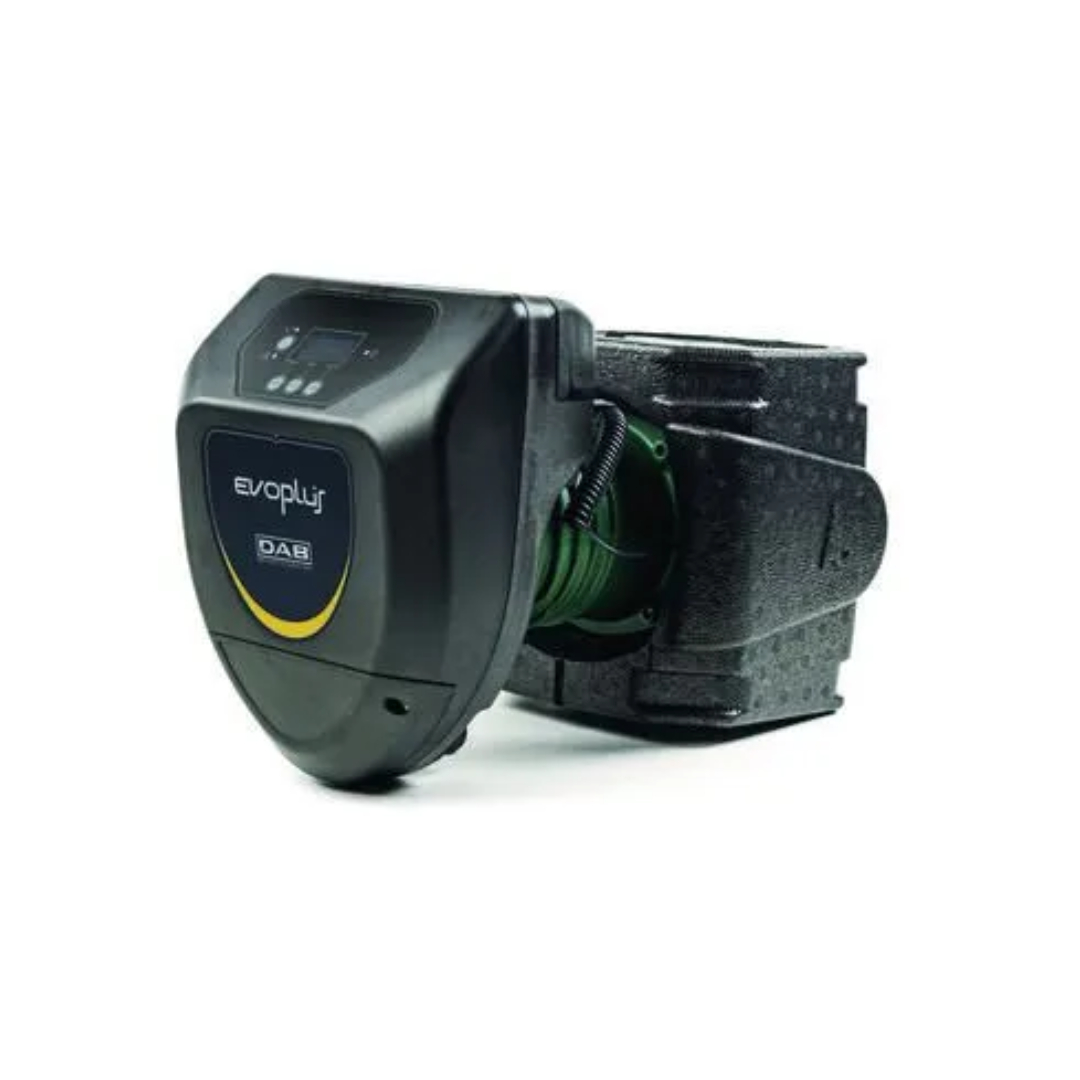

DAB Evoplus B 60/220.40 M - 60150964 - Anglian Pumping Services

Our Price £948.91 Inc Vat £790.76 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

Applications

DAB Evoplus (Small) circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings, such as:

Larger residential homes
Hospitals
Apartment buildings
Schools
Care homes
Office buildings

Full Description

More about this product

Full Description

HEATING SYSTEM APPLICATIONS
The heating required for the different applications varies significantly during day and night, due to the external temperature, or the degree of occupancy inside the areas. To the above, one must add the different needs of the various environments, and the opening or closing of the various circuit branches of complex systems. Electronic wet rotor pumps ensure at all times, and virtually in all correctly sized systems, a sufficient level of energy, together with a quieter operation, and more comfort, together with an important reduction of operating costs. AIR

CONDITIONING APPLICATIONS
Unlike conventional electronic pumps, EVOPLUS electronic circulators can be used also in air conditioning systems where the temperature of the pumped liquid is lower than the room temperature. In these conditions, condensation tends to form on the outer surface of the circulator, which however does not affect the operation of the electronic and the mechanical components. The unit is designed and sized in such a way that it allows condensation to drain without damage to the construction components.

SANITARY RECIRCULATION APPLICATIONS
The SAN version, with bronze pump body, was specifically developed for the recirculation of sanitary water. With the constant temperature mode of operation, the temperature inside the recirculation piping is controlled without the need for thermostat valves, therefore optimizing comfort.

Additional Information

TECHNICAL DATA

Circulator protection rate: IP 44.
Insulation class: F.
Standard voltage: single-phase 220/240V, 50/60Hz. In accordance with European standards: EN 61800-3 – EN 60335-1 – EN 60335-2-51.
Operating range: from 2 to 75.6 m3/h with head up to 18 meters.
Liquid Temperature range: from -10 °C to 110 °C.
Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water (max. glycol contents 30%).
Maximum working pressure: 16 bar (1600 kPa). Standard flanging: DN 32, DN 40, DN 50, DN 65, PN 6 / PN 10 / PN 16 (4 slots), DN 80 e DN 100, PN 6 (4 slots) usable with flange 4 holes PN10. Special version on demand: DN 80 , DN 100 PN 10 / PN 16 (8 holes) Installation: with horizontal motor shaft
