DAB Evoplus M/L Single Electric Circulators (Without Unions)

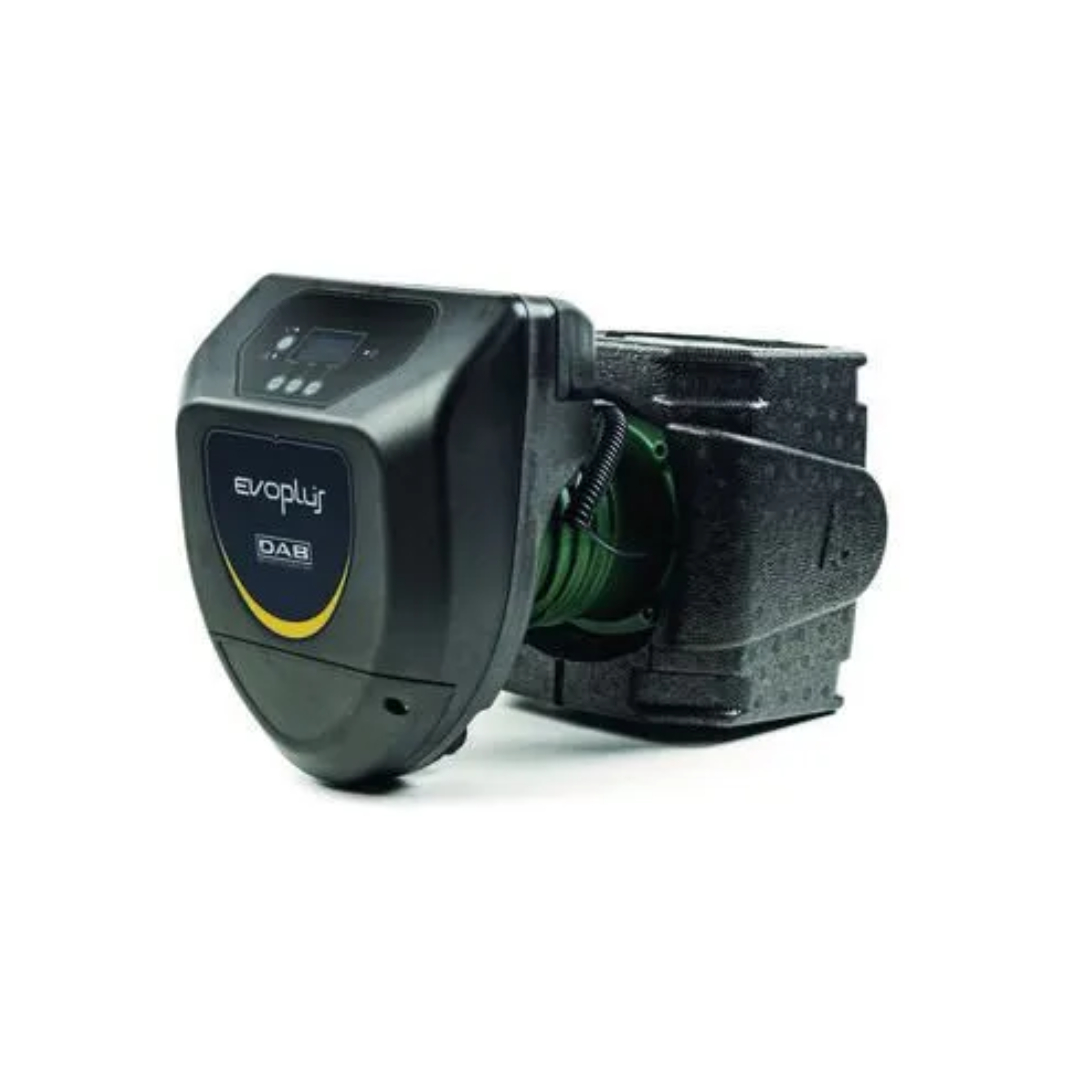

DAB Evoplus B 100/280.50 M – 60150973
In stock
- Established 1975
- Trusted by thousands of customers
The DAB Evoplus B 100/280.50 M (product code 60150973) is a single-phase electronic wet rotor circulator pump designed for heating, ventilation, and air conditioning systems in both residential and commercial buildings.
Key Features:
- Energy Efficiency: Equipped with advanced electronics and a permanent magnet rotor, the Evoplus series ensures high performance with reduced energy consumption, achieving up to 70% energy savings compared to traditional circulators.
- Integrated Controls: The pump features an intuitive on-screen control system and integrated ModBus connectivity, allowing for easy monitoring and integration into building management systems.
- Construction: The pump body is made of cast iron with DN32 flanged connections, suitable for various installations.
Technical Specifications:
- Power Supply: Single-phase 220/240V, 50/60Hz.
- Maximum Head: 10 meters.
- Port-to-Port Distance: 280 mm.
- Liquid Temperature Range: -10°C to 110°C.
- Protection Rating: IP44.
This circulator pump is suitable for applications in larger residential homes, hospitals, apartment buildings, schools, care homes, and office buildings, providing efficient circulation for heating and cooling systems.
More about this product
HEATING SYSTEM APPLICATIONS
The heating required for the different applications varies significantly during day and night, due to the external temperature, or the degree of occupancy inside the areas. To the above, one must add the different needs of the various environments, and the opening or closing of the various circuit branches of complex systems. Electronic wet rotor pumps ensure at all times, and virtually in all correctly sized systems, a sufficient level of energy, together with a quieter operation, and more comfort, together with an important reduction of operating costs. AIR
CONDITIONING APPLICATIONS
Unlike conventional electronic pumps, EVOPLUS electronic circulators can be used also in air conditioning systems where the temperature of the pumped liquid is lower than the room temperature. In these conditions, condensation tends to form on the outer surface of the circulator, which however does not affect the operation of the electronic and the mechanical components. The unit is designed and sized in such a way that it allows condensation to drain without damage to the construction components.
SANITARY RECIRCULATION APPLICATIONS
The SAN version, with bronze pump body, was specifically developed for the recirculation of sanitary water. With the constant temperature mode of operation, the temperature inside the recirculation piping is controlled without the need for thermostat valves, therefore optimizing comfort.
TECHNICAL DATA
Circulator protection rate: IP 44.
Insulation class: F.
Standard voltage: single-phase 220/240V, 50/60Hz. In accordance with European standards: EN 61800-3 – EN 60335-1 – EN 60335-2-51.
Operating range: from 2 to 75.6 m3/h with head up to 18 meters.
Liquid Temperature range: from -10 °C to 110 °C.
Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water (max. glycol contents 30%).
Maximum working pressure: 16 bar (1600 kPa). Standard flanging: DN 32, DN 40, DN 50, DN 65, PN 6 / PN 10 / PN 16 (4 slots), DN 80 e DN 100, PN 6 (4 slots) usable with flange 4 holes PN10. Special version on demand: DN 80 , DN 100 PN 10 / PN 16 (8 holes) Installation: with horizontal motor shaft
-
Data Sheet PDFDownload
