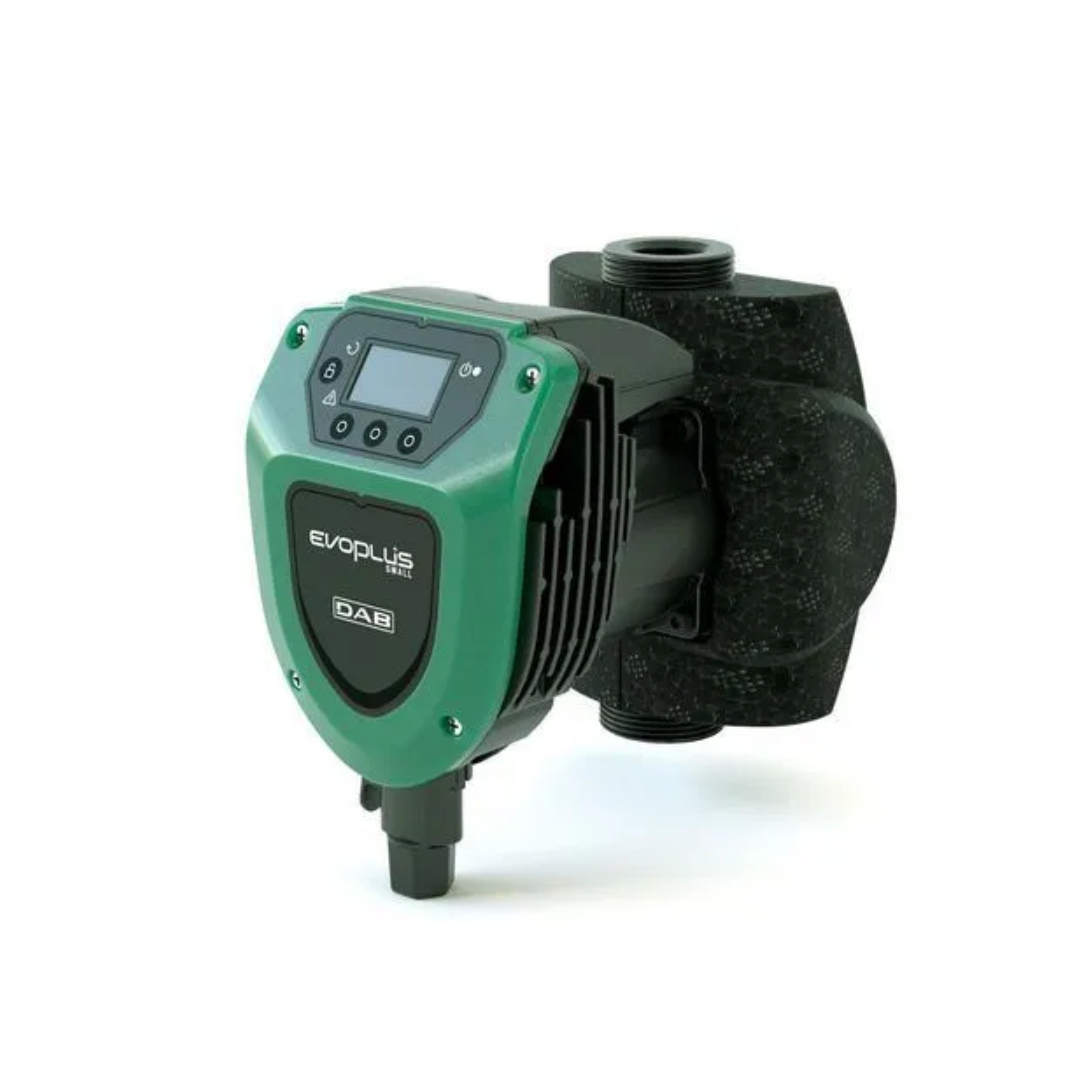

DAB Evoplus Small Electric Circulators (Without Unions)
DAB Evoplus 80/180 XM – 60150944
In stock
- Established 1975
- Trusted by thousands of customers
Applications
DAB Evoplus (Small) circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings, such as:
- Larger residential homes
- Hospitals
- Apartment buildings
- Schools
- Care homes
- Office buildings
More about this product
TECHNICAL DATA
Operating range: from 2 a 12 m³/h with head of up to 11 metres.
Pumped liquid temperature range: from -10 °C to +110 °C. Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water. (glycol max 30%). Maximum operating pressure: 16 bar (1600 kPa).
Standard flanges: DN 32, DN 40 PN 6 / PN 10 / PN 16 (4 holes).
Maximum ambient temperature: + 40 °C.
Minimum suction pressure: the values are shown in the corresponding tables. Accessories: ½”F, ¾”F, 1”F, 1”¼F, 1”¼M union connectors. DN 32 PN 10 and DN 40 PN 10 threaded counter flanges. Electromagnetic compatibility: EVOPLUS circulator comply with EN 61800-3 standard, category C2, as far as electromagnetic compatibility.
Electromagnetic emissions: Residential environment (containment measures might be required in some cases).
Conducted emissions: Residential environment (containment measures might be required in some cases).
Circulator protection class: IP 44.
Insulation class: F.
Standard voltage: single-phase 220-240 V, 50/60 Hz. Sound pressure values: ≤ 33 dB(A). Product compliant with European Standards EN 61800-3 – EN 60335-1 – EN 60335-2-51
-
Data Sheet PDFDownload
