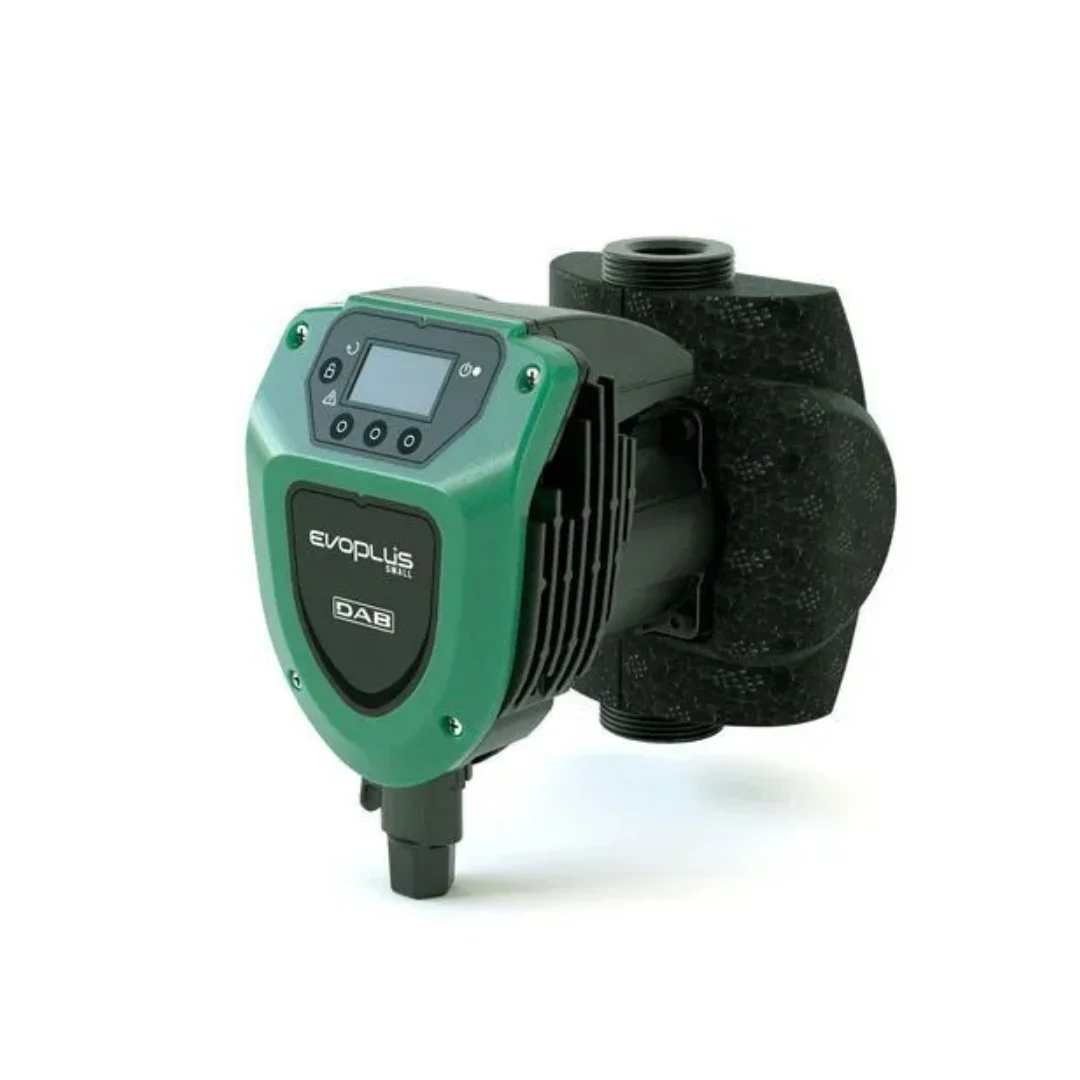

DAB Evoplus Small Electric Circulators (Without Unions)
DAB Evoplus 80/180 M – 60150940
In stock
- Established 1975
- Trusted by thousands of customers
Applications
DAB Evoplus (Small) circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings, such as:
- Larger residential homes
- Hospitals
- Apartment buildings
- Schools
- Care homes
- Office buildings
More about this product
TECHNICAL DATA
Operating range: from 2 a 12 m³/h with head of up to 11 metres.
Pumped liquid temperature range: from -10 °C to +110 °C. Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water. (glycol max 30%). Maximum operating pressure: 16 bar (1600 kPa).
Standard flanges: DN 32, DN 40 PN 6 / PN 10 / PN 16 (4 holes).
Maximum ambient temperature: + 40 °C.
Minimum suction pressure: the values are shown in the corresponding tables. Accessories: ½”F, ¾”F, 1”F, 1”¼F, 1”¼M union connectors. DN 32 PN 10 and DN 40 PN 10 threaded counter flanges. Electromagnetic compatibility: EVOPLUS circulator comply with EN 61800-3 standard, category C2, as far as electromagnetic compatibility.
Electromagnetic emissions: Residential environment (containment measures might be required in some cases).
Conducted emissions: Residential environment (containment measures might be required in some cases).
Circulator protection class: IP 44.
Insulation class: F.
Standard voltage: single-phase 220-240 V, 50/60 Hz. Sound pressure values: ≤ 33 dB(A). Product compliant with European Standards EN 61800-3 – EN 60335-1 – EN 60335-2-51
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free for all orders except for some low cost/low margin items where standard delivery is £6.50. Some difficult to transport goods also have a varying carriage charge applied.
Please contact us for the estimated standard delivery times of the products that we have in stock, either by calling 01473 719950, or by dropping us an email at info@anglianpumping.com.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £15.00 + vat delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
