DAB Aquajet Inox Pump Sets
DAB Aquajet Inox 82M-G
In stock
- Established 1975
- Trusted by thousands of customers

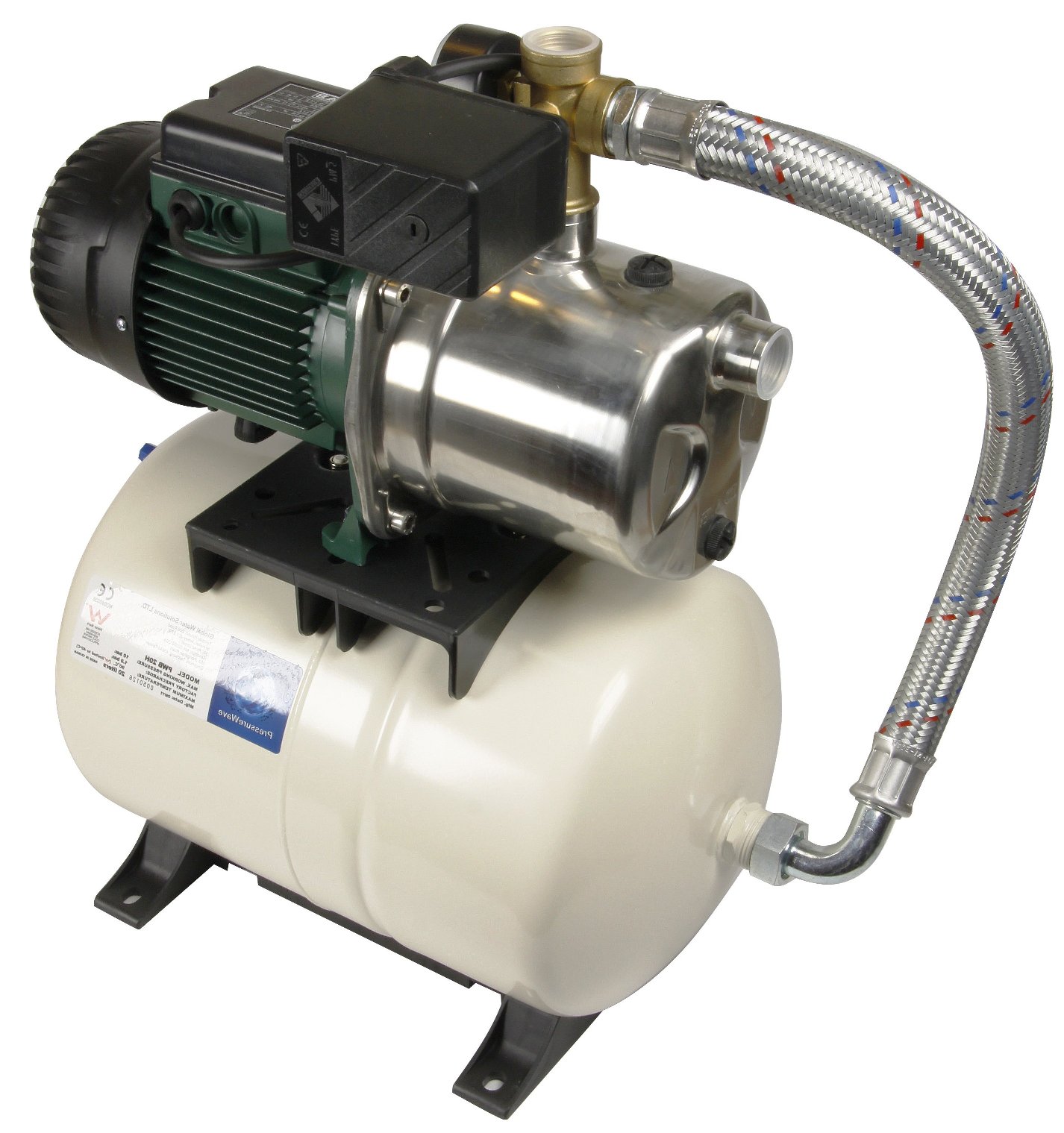

This DAB Aquajet Inox Automatic Self Priming Pressure Pump Unit is ideal for domestic, civil, agricultural and industrial use.
With an automatic water lifting unit, stainless steel JET self-priming pump and 20ltr horizontal membrane pressure vessel, this unit provides consistent pressure and high-level performance.
More about this product
A pressure switch allows for automatic operation, with pressure gauge and fitting kit between pump and motor providing further flexibility and performance management.
The asynchronous motor is cooled by external ventilation, with built-in thermal and current overload protection minimising risk of downtime.
Features and benefits:
- Stainless steel JET self-priming pump

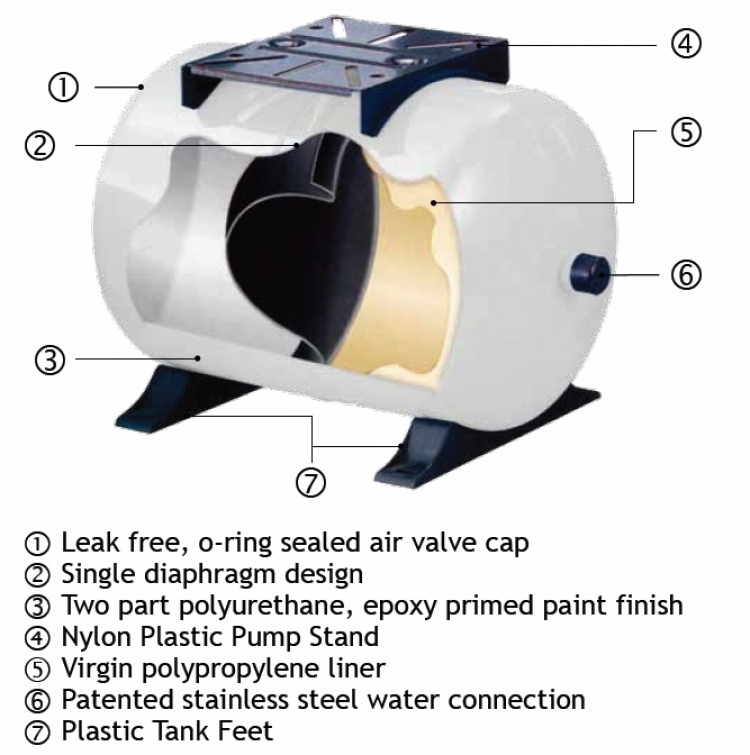

- 20ltr horizontal membrane pressure vessel
- Pressure switch for automatic operation
- Pressure gauge
- Fitting kit between pump and motor
- Thermal and current overload protection

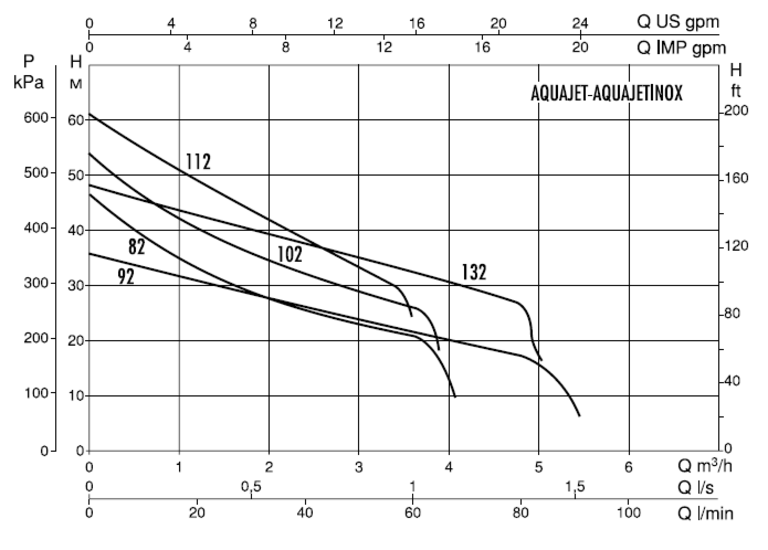

- Operating range: up to 5.4 m3/h with head up to 61 metres
- Liquid temperature range: 0°C to +35°C domestic use; 0°C to +40°C other use
- Maximum ambient temperature: +40°C
- Maximum working pressure: 8 bar (800 kPa)
- Protection level: IP 44 (IP 55 terminal board protection)
- Insulation class: F
- 1" Connections
- 230v single phase
-
Data Sheet PDFDownload
-
technical PDFDownload
-
instructions PDFDownload
-
instructions 2 PDFDownload
