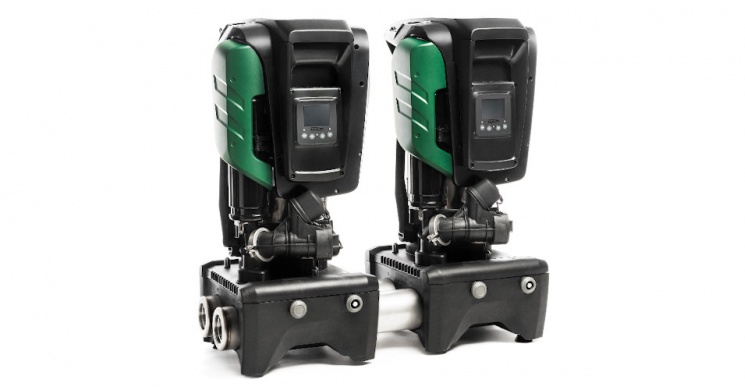

DAB Esybox MAX 60-120M Twin Pump Booster Set

The DAB Esybox MAX 60-120M is a complete twin-pump booster set designed for efficient and reliable water pressurization in commercial and residential buildings.

Key Features

Integrated Pumping System
- Suitable for pressurization in medium/large condominiums and high-rise buildings (even over 14 floors).
- Modular elements provide versatility for a variety of configurations, including single, double, or triple pump setups.
Flexible Configuration
- A four-pump system is achievable with an additional kit for connecting two double bases.
- Modular design enables on-site assembly, ensuring ease of transport and installation.
Quiet and Compact
- Designed for installation in a variety of locations, including inhabited areas, thanks to its silent operation and compact dimensions.

Applications

Medium to large residential buildings.
Commercial properties requiring high-pressure water systems.
High-rise buildings with complex water demand requirements.

The DAB Esybox MAX 60-120M delivers performance, flexibility, and convenience, making it an ideal choice for demanding water pressurization tasks in commercial and residential applications.

Full Description

More about this product

Full Description

Construction Features of the DAB Esybox MAX Pump

Pump Design

Electronic Vertical Multi-Impeller Configuration: Equipped with an advanced multi-impeller system for optimal water pressurization.
Integrated Components:
- Built-in display for monitoring and control.
- Pressure sensors on both intake and delivery sides for precise performance management.
- Non-return valve on the delivery side to prevent backflow.
- Integrated expansion tank for maintaining consistent pressure.
Material Composition:
- Pump body and impellers constructed from durable technopolymer with a steel jacket for added strength and corrosion resistance.

Motor Features

Water-Cooled Permanent Magnet Motor: Ensures energy-efficient and quiet operation.
Durable Materials:
- Stainless steel motor jacket for long-term durability.
- Motor shaft made of AISI 303 stainless steel, providing excellent corrosion resistance.

Electronic Features

Variable Frequency Drive (VFD):
- Maintains constant pressure by adjusting motor speed to match water demand dynamically.
Expansion Module Compatibility:
- The optional esy I/O module allows seamless integration with building management systems (BMS) and other system components for enhanced control and monitoring.

The DAB Esybox MAX combines innovative construction, efficient performance, and system compatibility, making it ideal for demanding water management applications.

Additional Information

TECHNICAL DATA

Flow rate: Up to 17,4 m3/h (For single unit)

Head: 113 m

Type of pumped liquid: Clean, free from solid or abrasive substances,

Liquid temperature: +50°C

Maximum ambient temperature: +55°C

Maximum inlet pressure: 5 bar

Operation pressure: 12 bar / 1200 kPa

Constant pressure range: 1-12 bar (3 bar by default)

Motor protection class: IP X5

Motor insulation class: F

Impeller material: Technopolymer

Single phase power input: 208-240V 50/60Hz

Three phase power input: 380-480V 50/60Hz

Type of installation: Fixed in vertical position

Certification: WRAS, ACS, NSF61 ( are pending approval )
