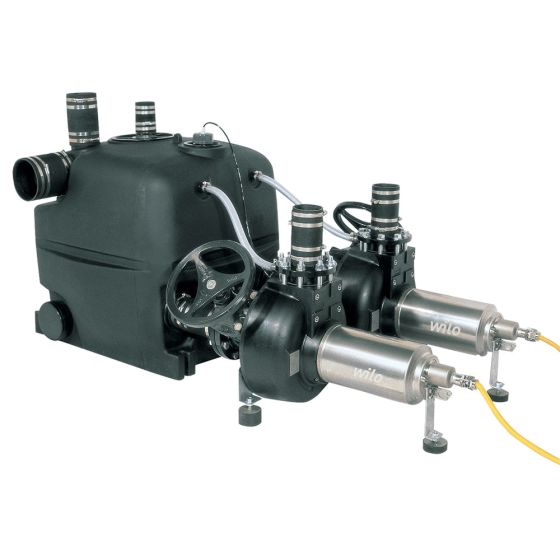

Wilo DrainLift XXL 1040-2/3.9 2509014

Our Price £19,657.20 Inc Vat £16,381.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

The Wilo DrainLift XXL delivers on every level; it is ready-for-connection, submersible, and automatically lifts sewage with automated duty cycling, standby, and peak-load operation options. It consists of two separate, upstream, dry-installed submersible sewage pumps in three-phase version, with sheath flow cooling, stainless steel housing, and thermal motor monitoring. Two collection reservoirs are also utilised; they are both gas-tight and water-tight, and are crafted from plastic with clearly defined inlet connections and level controls with a level sensor.

Full Description

More about this product

Full Description

Ready to connect
Submersible
Automatic sewage lifting unit – double-pump system with automatic duty cycling, standby and peak-load operation
To be applied for the pumping of sewage (according to DIN EN 12050-1) that cannot be returned to the sewer system via a natural downward slope, and backflow resistant drainage of discharge points below the backflow level (according to DIN EN 12056-1)
Two separate, upstream, dry-installed submersible sewage pumps
Two plastic gas-tight and water-tight collection reservoirs with clearly defined inlet connections and level control with level sensor
Sheath current cooling
Thermal motor monitoring and leakage detection
Switchgear with mains-dependent alarm and Zener barrier in the housing
Potential-free contact
Pump cable detachable
Hose connection for venting
Hose connection for diaphragm hand pump
Fixation material
Microprocessor-controlled switchgear with:
- LEDs for displaying operating status and error messages
- Adjustable follow-up time
- Integrated and mains-dependent alarm
- 1x potential-free contact for connection of a collective fault signal (SSM)
Flexible – you can use either one or two tanks
Optimal tank drainage due to deep extraction by suction
Operational reliability via high performance range and reliable level recording
Suitable for continuous duty (S1)
Please note: the switchgear is not submersible so it must therefore be arranged in such a way that it is safe from flooding

Downloads

Wilo Drainlift XXL Instructions PDF
Download
Data Sheet - 2509014 PDF
Download
