V-FLOW RANGE
TT V100555 ASD 400V/3Ph – PB/V100-5.5-5/SL
In stock
- Established 1975
- Trusted by thousands of customers

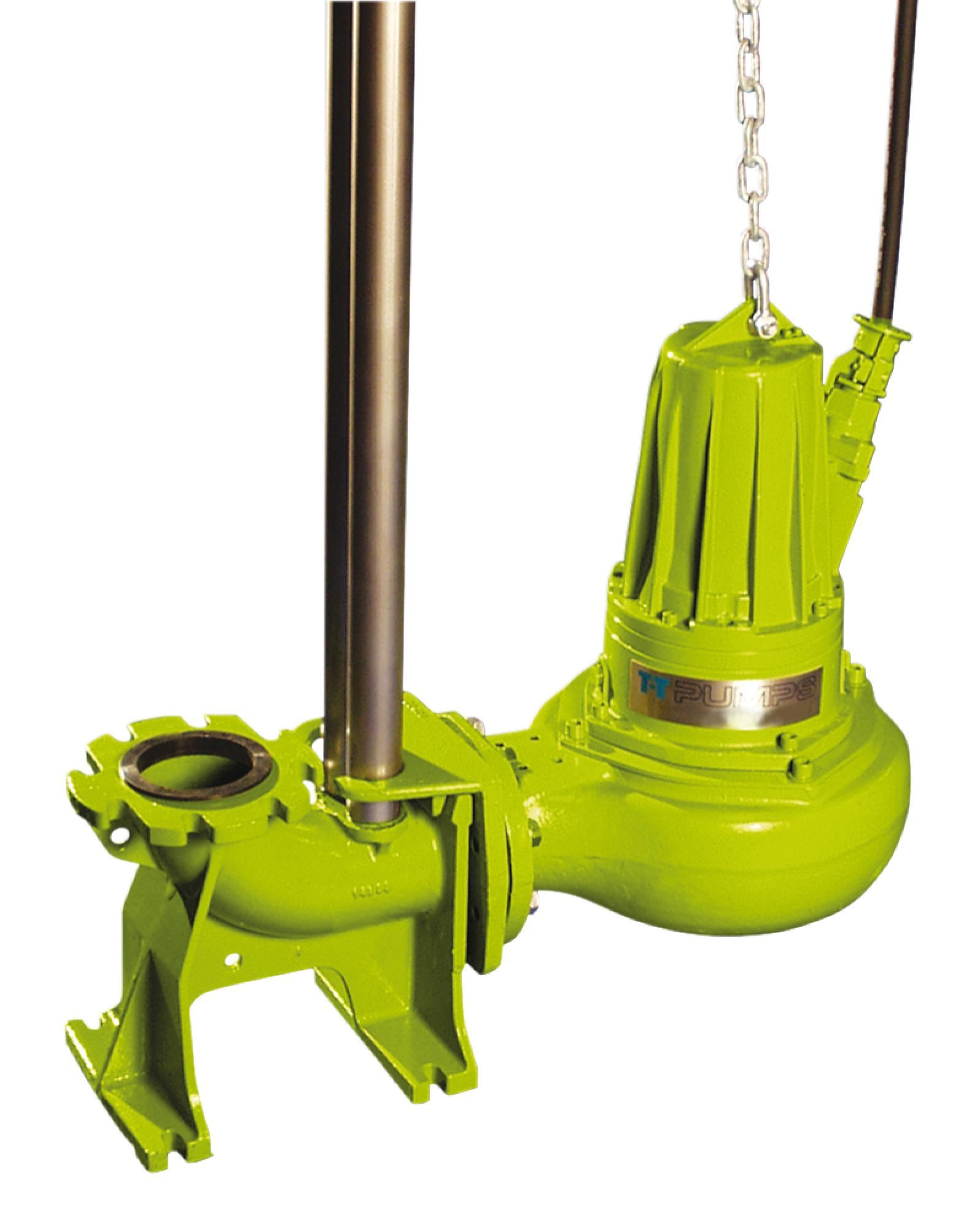

V-Flow submersible sewage pumps have a vortex-type impeller for excellent solids passage. This avoids blockages and they have the ability to handle fibrous material. These submersible sewage pumps incorporate an explosion-proof motor as standard (suitable for use in Zone 1 – hazardous gas areas).
Designed and manufactured by TT Pumps in the UK.
Motor Sizes 1.5 kW to 7.5 kW
Discharge 100 mm.
Solids Handling 100 mm
More about this product
V-FLOW RANGE (EEXD IIB T4)
Made from cast iron it is suited for zone 1 applications due to the ATEX rating. Available with a selection of motor/impeller combinations, enabling flexibility to match specific application and performance requirements.
Features
- Cast iron construction
- Double mechanical seal within an oil bath
- 100mm solids handling
- 100mm discharge
- Auto-coupling available
- Oil seal leak sensor as standard
- ATEX rated for Zone 1 applications
Benefits
- Great solids handling at 100mm
- Sturdy design and built long life
- Fully repairable with great aftersales backup
Download the data sheet for more information
-
Data Sheet PDFDownload
