Ebara Multigo 40/12 230v/3ph - Anglian Pumping Services

Our Price £603.60 Inc Vat £503.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

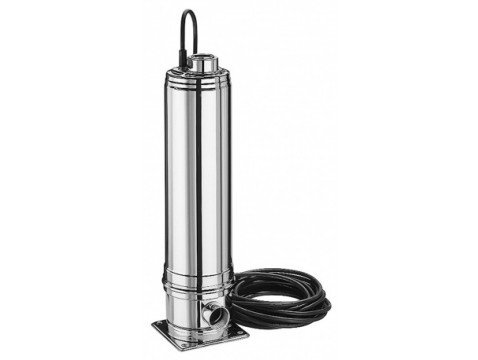

MULTIGO VERTICAL MULTISTAGE 230v/3ph

Ebara Multigo pumps are multistage centrifugal pumps, with motors that are cooled by the flow of water passing the motor as it is being pumped. Double mechanical seals are fitted with a lubricating chamber between them to assure a longer life.

Suitable applications include: –

Pressure boosting
Water supply
Fountains
Dancing water features
Sprinkler sytems
Irrigation

Each pump is supplied with 5m of HO7 RN-F power cable.

Materials of construction

Pump body, casing cover and motor casing from AISI 304 Stainless Steel
Impeller and diffuser in Technopolymer
Shaft in AISI 416 Stainless Steel
Mechanical seal in Carbon/Ceramic/Nitrile

Full Description

More about this product

Full Description

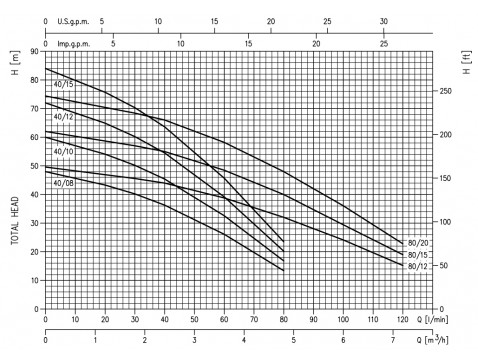

PUMP TECHNICAL DATA

• Total head from 75.7 to 13.4 m
• Capacity from 1.2 to 7.2 m3/h
• Hydraulic efficiency index MEI > 0.4
• Liquid temperature up to +40°C
• Maximum suction depth: 6 m
• IP 68 protection degree

Downloads

data sheet PDF
Download

Delivery Information

Standard delivery:

Standard delivery is free for all orders except for some low cost/low margin items where standard delivery is £6.50. Some difficult to transport goods also have a varying carriage charge applied.

Please contact us for the estimated standard delivery times of the products that we have in stock, either by calling 01473 719950, or by dropping us an email at info@anglianpumping.com.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:

Next working day delivery is available for a £15.00 + vat delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

Ebara Multigo pumps are multistage centrifugal pumps, with motors that are cooled by the flow of water passing the motor as it is being pumped. Double mechanical seals are fitted with a lubricating chamber between them to assure a longer life.
