Ebara DW – DW VOX Pumps

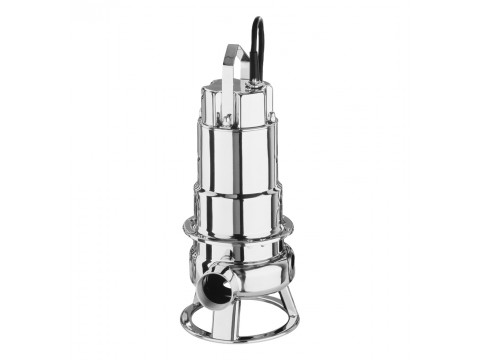

The single phase DW VOX M 100 from Ebara comes as a submersible electric pump in AISI 304 stainless steel for sewage.

Applications

Evacuation of civil and industrial waste waters
Drainage of wells and excavations
Draining sub-layer zones
Generally moving foul waste liquids also containing solid substances and/or suspended filamentary substances
Emptying seepage water
Moving sewage (sanitary services)
Emptying cesspits

Technical Details

Equipped with 10 m of H07 RN-F power supply cable
Manual: Without float
Vortex type impeller

Technical Data

Maximum immersion: 7 m
Maximum temperature of the liquid: 40°C
Max. solids size for passage: 50 mm
Self-ventilated 2 pole asynchronous motor
Class of insulation F
IPX8 Protection rating
230V ±10%, 50Hz single phase voltage
Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
Protection under user’s responsibility for the three phase version
Threaded version: ø 50 discharge, G2 discharge

Materials

Pump body, impeller, motor cover, seal housing disc and motor case in AISI 304
Shaft in AISI 303
Twin mechanical seal with interposed oil chamber:
– upper in Carbon/Ceramic/NBR (motor side)
– lower in SiC/SiC/NBR (pump side)
Spacer in cast iron (only for DW-DW VOX 300)
