Ebara Best One VOX M 230v - Anglian Pumping Services

Our Price £210.00 Inc Vat £175.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

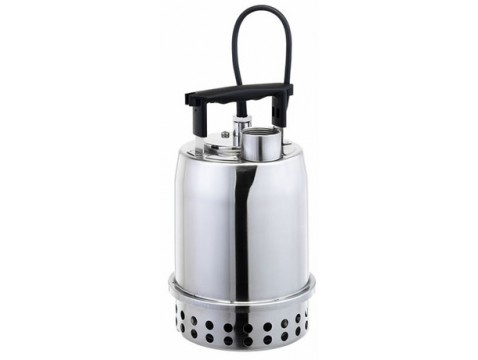

The Ebara Best VOX M is a submersible electric pump for clean water with maximum solid sizes of 20mm in 304 stainless steel.

Applications –

Draining basements, garages, cellars or places subject to flooding.
Garden fountains
Emptying of tanks and reservoirs

Full Description

More about this product

Full Description

TECHNICAL DETAILS

• Total head from 1.8 to 8.3 m for BEST ONE and from 1.5 to 6 m for BEST ONE VOX
• Capacity from 1.2 to 10.2 m3/h
• Maximum immersion 5 m
• Maximum liquid temperature 50°C
• Maximum solid size passage:
– 10 mm
– 20 mm for version VOX (VORTEX)

SPECIAL VERSIONS

– Version MA with float
-Version VORTEX (VOX)
– Version MA with magnetic float MS vertical with reduced dimensions for clean water

ACCESSORIES

• 1”¼ hose connector and relative hose clamp (optional)
• Minimum suction device up to 3 mm

Additional Information

Applications

Draining basements, garages, cellars or places subject to flooding
Supplying garden fountains
Easy emptying of tanks and reservoirs

Technical Details

Standard mechanical seal
New and revised design and shape
Technologically and mechanically optimised
Their versatility means they can be used in fixed or mobile installations
Equipped with 5 m of H05 RN-F power supply cable for indoor use (10 m for outdoor use), with or without float

Technical Data

Maximum immersion: 5 m
Maximum temperature of the liquid: 50°C
Max. solids size for passage:
– 10 mm
– 20 mm for the VOX version (Vortex)
Asynchronous motor, 2 poles
Class of insulation F
IP68 Protection rating
230V ±10%, 50Hz single phase voltage, 400 ±10%, 50Hz three phase voltage
Discharge connection: G1¼

Materials

External casing, impeller, filter, motor cover, seal housing disc and motor case in AISI 304
Shaft in AISI 303
Mechanical seal in Carbon/Ceramic/NBR

Downloads

data sheet PDF
Download
