DAB DTRON 3 45/90 WRAS (1~ 230V) – 60197750
In stock
- Established 1975
- Trusted by thousands of customers
DTron is DAB’s new line of electronically switched submersible pumps for water pressurization in residential environments.
DAB DTRON Pump Models
- DAB DTRON 2 – Standard model without detailed interface.
- DAB DTRON 3 – Same as DTRON 2 but with added water level gauge and the ability for smart control using a COM BOX screen or a 'DConnect Box 3' connecting to a smartphone app.
DAB DTron pumps are 7-inch submersible electronic multi-impeller pump designed for use in wells, cisterns or tanks. It can be used submerged, partially submerged or installed on the surface with a DOC68 (supplied separately). The DTron is suitable for use in residential building services to increase water pressure, reuse rainwater in gardens or even irrigate small vegetable gardens. It integrates the electronics for automatic switching on and off, a double mechanical seal in an oil chamber, a non-return valve and a handle for transport. The electronic operation also protects against the dry run. The integrated expansion vessel protects from water hammer, an additional expansion vessel is not required. It is possible to connect a float without compromising the watertight of the pump thanks to the NFC (Near Field Communication) pocket.
DTRON Formats and Applications:
- DTRON DRY VERSION – For surface installation installed out of the water using Doc68 adaptor.
- DTRON STANDARD VERSION – For in-tank installations.
- DTRON X VERSION – For well installations, a floating pickup means dust and debris will no longer be a problem.
WRAS, ACS, NSF Approved.
More about this product

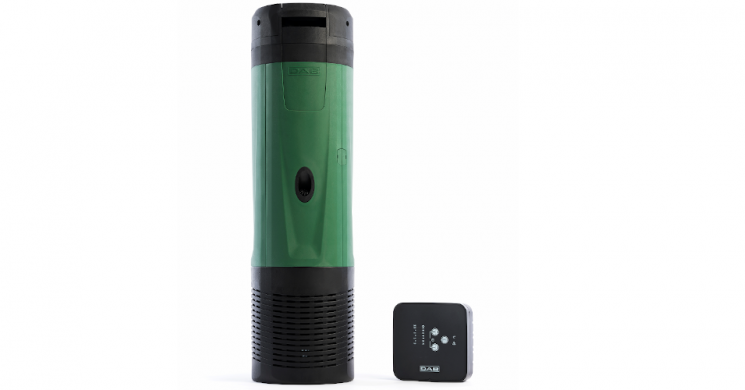

DTron 3 by DAB is a 7 inch submersible electronic multi-impeller pump designed for use in wells, cisterns or tanks. It can be used submerged, partially submerged or on the surface, with DOC68 (supplied separately). DTron 3 is suitable for use in residential buiding service to increase water pressure, reuse of rainwater and to water the garden or irrigate small vegetable gardens. DTron 3 integrates the electronics for automatic switching on and off. The suction height is adjustable from the bottom up to 8 cm. It is possible to connect a float without compromising the watertight of the pump thanks to the NFC (Near Field Communication) pocket. Com Box included, it allows to set the cut-in pressure and to control the alarms, it communicates with the pump through the PLC technology (PowerLine Communication), without other connection cables if not the electrical power.
TECHNICAL DATA
- Flow rate maximum: 7,5 m3/h
- Head up to: 45 m
- Maximum immersion depth: 7/12 m
- Type of pumped liquid: Clean, free from solid or abrasive substances,non-viscous, non-aggressive, non-crystallized and chemically neutral
- Free passage: 2 mm
- Minimum suction depth: 110 mm
- Minimum level of water: 35 mm
- Liquid temperature range: from +0°C to +50°C
- Minimum and maximum ambient temperature: <0°C / +50°C
- Maximum immersion depth: 15 m
- Set cut-in: 2,4 bar (±0,2)
- Flanges, thread: Thread 1” 1/4
- Pump maximum diameter: 185 mm
- Impeller/s material: Technopolymer/ AISI 304 stainless steel
- Maximum number of starts: 60/h
- Non-stop service: yes
- Protection class: IP 68
- Motor insulation class: F
- Power cable (m) and plug: 10/15 m with plug
- Single phase power input: 230 V 50 Hz
- Possible type of installation: Fixed, horizontal or vertical. Submergedor semi-submerged. It can be installed on the surface, under the waterlevel, or outside in a vertical position with the DOC68 accessory (supplied separately).
-
Instructions PDFDownload
-
Brochure PDFDownload
-
Data Sheet PDFDownload
