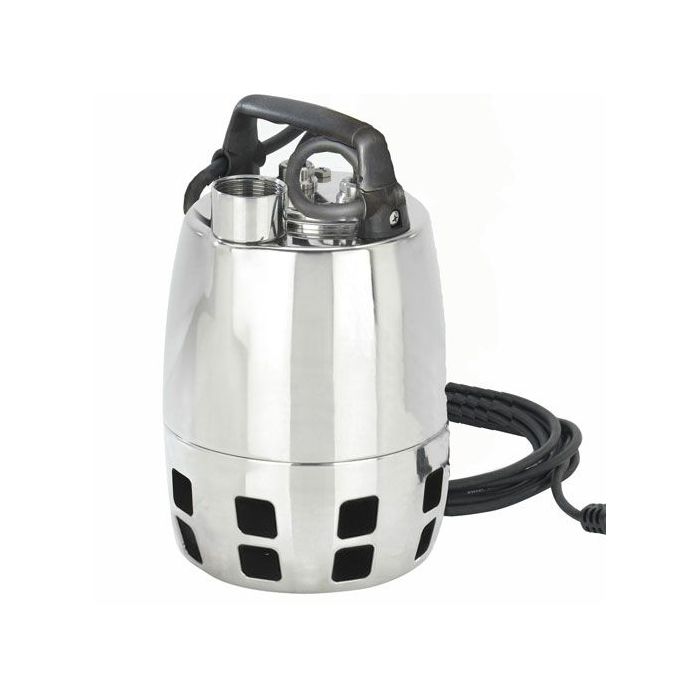

CALPEDA GXVM 25-6-SG SUBMERSIBLE DIRTY WATER PUMP WITHOUT FLOATSWITCH 240V

Our Price £281.16 Inc Vat £234.30 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

Calpeda GXV25 submersible drainage pumps are suitable for use in a range of applications. They come fitted with an 110v, 240v or 415v motor and can be used with or without a floatswitch. The floatswitch is quick and easy to adjust when necessary and allows the pump to be automatically stopped and started. They have a suction strainer containing a double row of holes, which helps to prevent clogging. The pumps can be used for situations involving:

– clean or slightly dirty water, which contains solids up to 25mm in size
– they are especially suited to the flow of liquids containing filamentous particles

The GXV pumps are manufactured from chrome-nickel stainless steel and use a single free-flow (vortex) impeller. They have a vertical delivery port, which enables them to be installed in small pits without the need for an elbow on the pump. These pumps can be used with a frequency converter. The pumped water passes between the motor jacket and the external jacket to help cool the motor. The double shaft seal with oil chamber keeps the motor separate from the water and prevents accidental use when it is dry.

The GXV25 range of submersible drainage pumps have a maximum flow rate of 220 litres per minute and can accommodate heads up to 12.7m. They are suitable for use with liquid temperatures up to 50C. The pumps can be immersed up to a maximum depth of 5m. When they're used with a floatswitch, the minimum water level should be 130mm. For manually operated pumps the minimum level is 30mm. Calpeda are a leading Italian manufacturer of electrical pumps. They provide products with high levels of performance and reliability.

Full Description

More about this product

Full Description

Calpeda GXVm 25-6-SG Submersible Stainless Steel dirty water drainage pump (25mm solids handling) without floatswitch, 10m cable and 0.25kW 240V 1Ph 50Hz motor.

Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:

GXR:

For clean water containing solids up to 10mm diameter.
For draining rooms or or emptying tanks.
Extraction of water from ponds, streams or pits and for rainwater collection.
For irrigation purposes.

GXV:

For clean or slightly dirty water, containing solids up to 25 mm grain size.
Particularly suitable for liquidor with filamentous particles.
For outdoor use a power supply cable of not less than 10m should be used.

Construction Details:

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
GXR: with open impeller.
GXV(25): with free-flow (vortex) impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Handle in polypropylene.
Double shaft seal with oil chamber.
Certain models have a float switch for automatic start/stop.
Head up to 12.7m and flow rates up to 220 litres/min.
1 1/4" BSP Female Discharge Port.
