CALPEDA GEO230-GQSM50-13 SUBMERSIBLE PUMP LIFTING STATION (AUTOMATIC) 240V

Our Price £1,070.40 Inc Vat £892.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

GEO LIFTING STATIONS

Calpeda's GEO lifting stations are suitable for use in a range of domestic, public and industrial settings. They can be used to automatically collect and lift rainwater and waste water that is clean, as well as for draining flood water. The models have a range of different capacities, depending on the requirements of the application. The single tanks can have either 40 litre or 230 litre capacities and are fitted with a submersible pump.

The tank is made from a durable and high quality polyethylene, which is corrosion resistant. The compact structure allows them to be fitted into even confined spaces. The pump is manufactured from stainless steel and has a built-in float switch. The lifting station pumps have a maximum flow rate of 10.2m3/h. Within the different models, they are suitable for liquid temperatures up to a maximum of 50 degrees C.

The lifting stations can be installed either underground or level with the ground. A total of two extensions are allowed with underground installations. Once installed it is easy to access the pump for servicing and maintenance requirements, through the use of a cover attached with screws. The station comes with a pipe kit to connect to an electro pump.

Calpeda is an Italian based manufacturer which produces a number of high quality electrical pumps. Throughout its history, the company has shown a commitment to designing and developing innovative products; utilising the latest advances in technology and pioneering processes to produce reliable and durable products for a range of applications.

Full Description

More about this product

Full Description

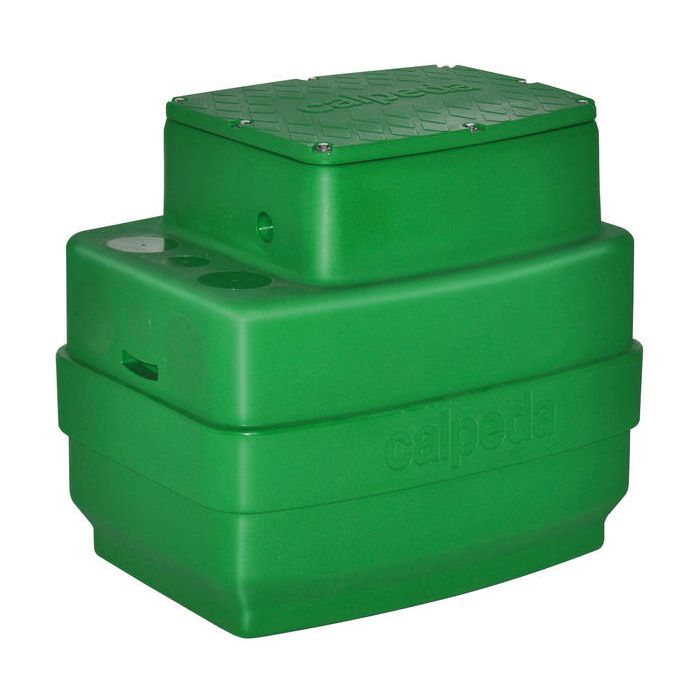

The GEO230 single tank with 230 litre nominal capacity comes with the GXVM25-6, 25-8, 25-10, 40-A and GQSM50-13 submersible pump depending on application. Other pump models can be fitted, please ask Sales for details.

The GEO230 range Automatic collecting and lifting stations:

For clean water GXR pump series
For waste water GXV pump series

Features:

1 x tank capacity 230 lt
1 x single-phase pump with 5 m cable and float switch
1 x discharge pipe kit Ø 40 mm in PVC

Pump Specification:

Stainless Steel construction
external float switch (cable)
36m3/hr max. flow
13m max. head

Downloads

Data Sheet PDF
Download
