ABS Piranha PIR-S12/2-D01*10-M 400V - Anglian Pumping Services

Our Price £1,724.90 Inc Vat £1,437.42 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

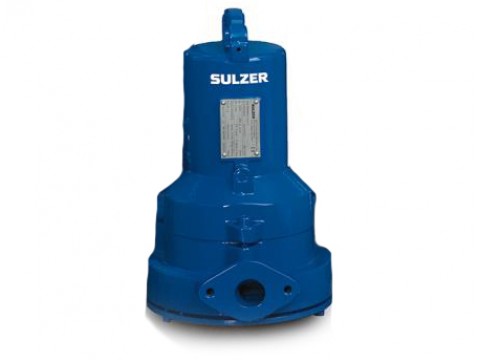

The Piranha PIR-S12/2-D01*10-M macerating pump from ABS features the unique Piranha shredding system capable of shredding items such as cloths and plastic bags. For the pumping of wastewater containing sewage, offal, organic and industrial effluent.

Technical

Flange – DN32
Discharge: Internal thread – G 1¼”
Motor power
From Mains – 1.69kW
From Motor Shaft – 1.20kW
Rated current – 3.29A
Rated voltage – 400V 3~
Speed – 2900 r/min
Cable size- 4G1.5
Weight – 32 kg

Full Description

More about this product

Full Description

Materials

Upper Lid – Stainless steel 1.4301 (AISI 304)
Motor Housing – Cast iron EN-GJL-250
Rotor Shaft – Stainless steel 1.4021 (AISI 420)
Volute – Cast iron EN-GJL-250
Impeller – Cast iron EN-GJL-250
Fasteners – Stainless steel 1.4401 (AISI 316)

Features

Unique ABS Piranha shredding system capable of shredding items such as cloths and plastic bags.
For the pumping of wastewater containing sewage, offal, organic and industrial effluent.
Maximum allowable temperature of the medium is 40 °C, or short term to 60 °C (max. 5 minutes)
Spiral bottom plate and stationary cutter ring combined with a shredding rotor located before the impeller, for optimum blockage-free running.
Small discharge lines from 1¼”
Installations are possible where large ground undulations are present.
Low installation costs due to small diameter discharge pipework.
Thermal sensors in the stator to switch off the pump in the case of overheating and switch on automatically after cooling down
DI system consisting of a sensor in the motor and oil chambers which signals an inspection alert if there is leakage at the shaft seals

Downloads

Data Sheet PDF
Download

Delivery Information

Standard delivery:

Standard delivery is free for all orders except for some low cost/low margin items where standard delivery is £6.50. Some difficult to transport goods also have a varying carriage charge applied.

Please contact us for the estimated standard delivery times of the products that we have in stock, either by calling 01473 719950, or by dropping us an email at info@anglianpumping.com.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:

Next working day delivery is available for a £15.00 + vat delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
