ABS Piranha PIR-08/2 W01*10-P 230V - Anglian Pumping Services

Our Price £847.80 Inc Vat £706.50 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

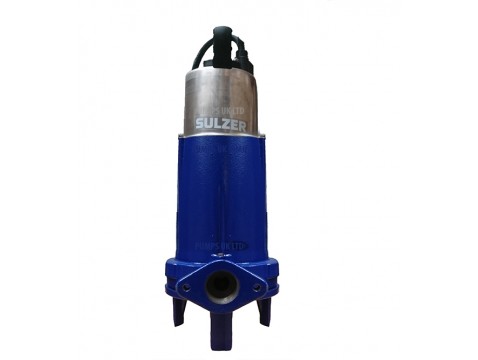

The Piranha PIR-08/2-W01*10-P lightweight cutter pump from ABS features the unique Piranha shredding system used for reliable and economical discharge of effluent under pressure. For effluent removal from houses especially in rural areas where high ground must be overcome, or where only small diameter pipework can be laid.

Full Description

More about this product

Full Description

Technical

Discharge: Internal thread – G 1¼”
Motor power
From Mains – 1.41kW
From Motor Shaft – 1.0kW
Rated current – 6.41A
Rated voltage – 220-240V 1~
Speed – 2900 r/min
Cable Length – 10m
Cable size- 3G1.0
Weight – 18 kg

Materials

Upper Lid – Stainless steel 1.4301 (AISI 304)
Motor Housing – Cast iron EN-GJL-250
Rotor Shaft – Stainless steel 1.4021 (AISI 420)
Volute – Cast iron EN-GJL-250
Impeller – Polyamide
Fasteners – Stainless steel 1.4401 (AISI 316)

Features

Unique ABS Piranha shredding system capable of shredding items such as cloths and plastic bags.
For the pumping of wastewater containing sewage, offal, organic and industrial effluent.
Piranha 08 and 09 fitted with MF modular motor
Piranha 08 and 09 available as KS version with float switch.
Piranha 08 and 09 are specially designed for private and domestic applications.
Maximum allowable temperature of the medium is 40 °C, or short term to 60 °C (max. 5 minutes)
Small discharge lines from 1¼”
Installations are possible where large ground undulations are present.
Piranha 08 and 09 have capacitor in upper lid and do not require a control box.
Low installation costs due to small diameter discharge pipework.
Thermal sensors in the stator to switch off the pump in the case of overheating and switch on automatically after cooling down
DI system consisting of a sensor in the motor and oil chambers which signals an inspection alert if there is leakage at the shaft seals
