Monsoon Twin Pump - Stuart Turner S3.0 bar 46416

Our Price £575.60 Inc Vat £479.67 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

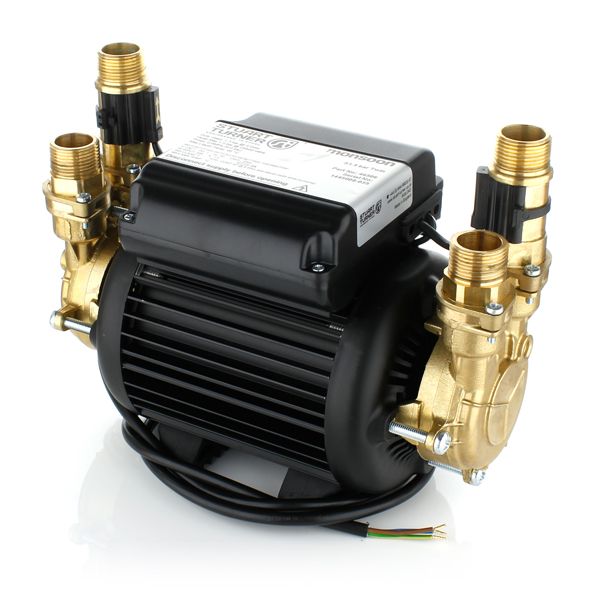

Stuart Turner Monsoon Standard Twin

Monsoon are a range of high performance, premium quality brass domestic shower pumps and whole house water pressure boosting pumps.

They are specifically designed to meet the demands of a host of domestic applications from a single tap or power shower to a complete bathroom or the whole property.

Monsoon pumps are suitable for water pressure and flow boosting applications within properties featuring a gravity/vented plumbing system.

Performance without compromise

Full Description

More about this product

Full Description

Key Features

General

Product code – 46416
Guarantee – 5 years
WRAS approval – 1404702

Features

Pump type – Peripheral
Mechanical seal – EPDM/PTFE/Al.oxide
Fleixble hoses – 4

Materials

Pump body – Brass
Impeller – Brass

Performance

Maximum head (closed valve) – 3.0 bar
Performance @ 9 l/min – 2.5bar
Performance @ 18 l/min – 2.1 bar
Maximum flow – 60 l/min
Maximum pressure – 10bar
Maximum static inlet pressure – 14 metres
Max working pressure – 6 bar
Min/max water temp – Min 4 degress / Max 65 degrees
Flow switch sensitivity – 0.6 l/min
Pump connections – G 3/4 male

Flexible hoses

G 3/4 female x 22mm push-in
300mm long
Isolating valves on all hoses

Motor

Type – Induction, auto-reset thermal trip
Duty rating – Continuous (S1) @ 9 l/min and above

Electrical

Power supply – 230v/1ph/50hz
Current – 2.8 amps
Power – 640 watts
Fuse rating – 5 amps
Power cable – 1.5m

Physical

Enclosure protection – IPX4
Lenght – 265mm
Width – 126mm
Height – 202mm (excluding hoses)
Weight – 7.5kg

Additional Information

Monsoon Standard 3.0 bar Twin S3.0 bar 46416 pumps are designed for installation into vented systems to pump both the hot and cold water supplies – boosting both equally. Suitable for positive head applications.

Monsoon Standard pumps require a gravity flow to start.

Application

Boost hot and cold water service to the complete home, bathroom, kitchen and cloakroom.
Boost hot and cold water supplies to a high performance shower system.
