Monsoon Standard Single
Stuart Turner Monsoon S3.0 bar Single 46419
In stock
- Established 1975
- Trusted by thousands of customers

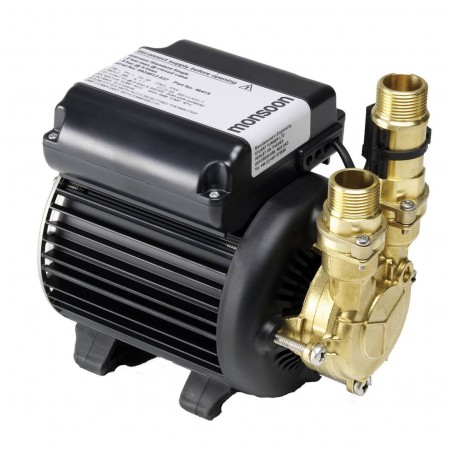

Stuart Turner Monsoon Standard Single
Monsoon are a range of high performance, premium quality brass domestic shower pumps and whole house water pressure boosting pumps.
They are specifically designed to meet the demands of a host of domestic applications from a single tap or power shower to a complete bathroom or the whole property.
Monsoon pumps are suitable for water pressure and flow boosting applications within properties featuring a gravity/vented plumbing system.
Performance without compromise
More about this product
Key Features
General
- Product code – 46419
- Guarantee –Â 5 years
- WRAS approval – 1404702
Features
- Pump type – Peripheral
- Mechanical seal – EPDM/PTFE/Al.oxide
- Fleixble hoses – 2
Materials
- Pump body – Brass
- Impeller – Brass
Performance
- Maximum head (closed valve) –Â 3.0 bar
- Performance @ 9 l/min – 2.5bar
- Performance @ 18 l/min –Â 1.6 bar
- Maximum flow –Â 33 l/min
- Maximum pressure – 10bar
- Maximum static inlet pressure –Â 14 metres
- Max working pressure – 6 bar
- Min/max water temp – Min 4 degress / Max 65 degrees
- Flow switch sensitivity – 0.6 l/min
- Pump connections – G 3/4 male
Flexible hoses
- G 3/4 female x 22mm push-in
- 300mm long
- Isolating valves on all hoses
Motor
- Type – Induction, auto-reset thermal trip
- Duty rating – Continuous (S1) @ 9 l/min and above
Electrical
- Power supply – 230v/1ph/50hz
- Current –Â 1.7 amps
- Power –Â 385 watts
- Fuse rating –Â 5 amps
- Power cable – 1.5m
Physical
- Enclosure protection – IPX4
- Lenght – 200mm
- Width – 126mm
- Height – 202mm (excluding hoses)
- Weight – 5.4kg
Monsoon Standard 3.0 bar Single S3.0 bar 46419 pumps are designed for installation into vented systems to pump both the hot and cold water supplies – boosting both equally. Suitable for positive head applications.
Monsoon Standard pumps require a gravity flow to start.
Application
- Boost hot and cold water service to the complete home, bathroom, kitchen and cloakroom.
- Boost hot and cold water supplies to a high performance shower system.
