Pedrollo JSWm 3C L 230v Cast iron JET pump self-priming
In stock
- Established 1975
- Trusted by thousands of customers

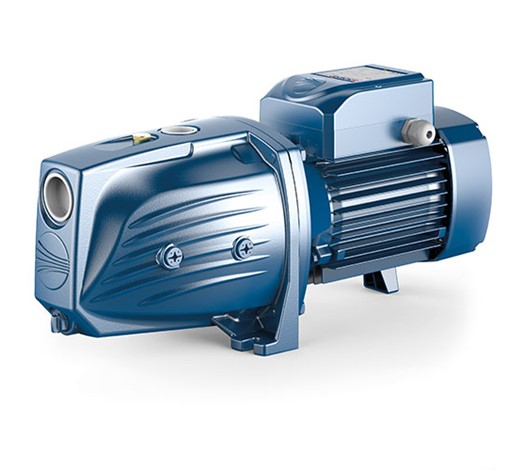

Pedrollo JSWm 3C L 230v cast iron JET pump – self-priming
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming JSW pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
More about this product
Liquid type: clean water
Uses: domestic, civil, industrial
Applications: water supply systems, fire-fighting sets, washing systems, pressure systems, irrigation pumps, liquids transfer
typology: surface
Family: self-priming
Performance Range:
- Flow rate up to 160 l/min (9,6 m³/h)
- Head up to 96 m
Application Limit:
- Temperature of the liquid to +40 °C
- Ambient Temperature da -10 °C to +40 °C
• Manometric suction lift up to 9 m (HS)
• Max. working pressure 10 bar
• Continuous service S1
MODEL
JSWm 3CH
JSW 3CH
JSWm 3BH
JSW 3BH
JSW 3AH
JSWm 3CM
JSW 3CM
JSWm 3BM
JSW 3BM
JSW 3AM
JSWm 3CL
JSW 3CL
JSWm 3BL
JSW 3BL
JSW 3AL
-
data sheet PDFDownload
