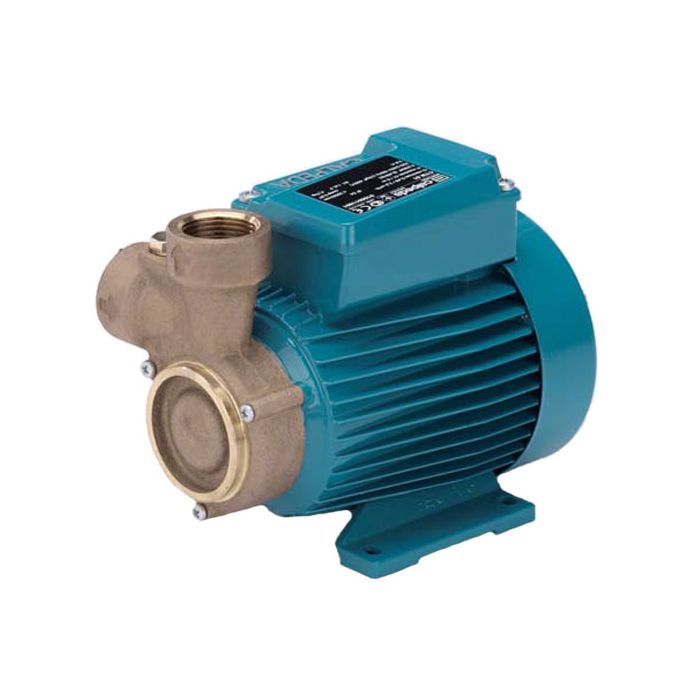

Calpeda B-TP78A Bronze Peripheral 400v B-TP78A

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.
T, TP: version with pump casing and lanter bracket in cast iron. B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Full Description

More about this product

Full Description

Applications –

For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials. For increasing network pressure (follow local specifications). For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.

Operating conditions –

Liquid temperature up to 60 °C. Ambient temperature up to 40 °C. Total suction lift up to 7 m. Maximum permissible working pressure: 6 bar. Continuous duty (S3 60% for three-phase motors).

Downloads

data sheet PDF
