ESPA Acuapres
Espa Acuapres 07S 4M 230V – 3 bar
In stock
- Established 1975
- Trusted by thousands of customers

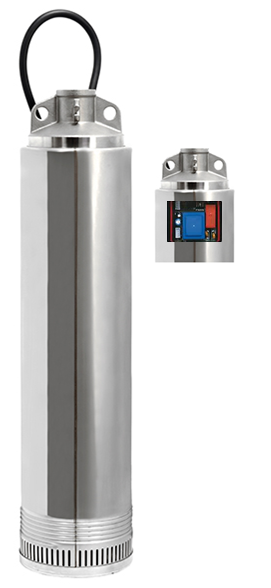

Automatic submersible pump for water supply.
Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation is automatic start and stop based on water demand.
Suitable for open wells, ponds and tanks in applications like sprinkler or drip irrigation, water transfer or domestic booster. Starting pressure 2 bar.
Easy-to-use and install, its integrated electronics automatically starts and stops the pump, with a stainless steel inlet filter included on the pump body. An effective IP68-rated motor provides consistent high-pressure, positioned in the top of the pump and cooled by the pumped liquid.
More about this product
Equipment
- Check valve: Included
Manufacturing features
- Discharge connection type: Thread
- Discharge diameter: 1"
- Motor cooling: Water
- Tightness by: Double mechanical seal
Limitations
- Maximum submersion (m): 12
- Water temperature (ºC): Max: 40
Electrical features
- Electrical isolation: F Class
- Motor type: Asynchronous
- Protection rating: IP68
- Reset: Automatic
- Service factor: S1
Materials
- Diffuser/s: Technopolymer
- Discharge body: Stainless steel AISI 304
- Impeller/s: Stainless steel AISI 304
- Mechanical seal: Aluminium-Graphite
- O-rings: NBR/EPDM
- Pump body: Stainless steel AISI 304
- Pump shaft: Stainless steel AISI 431
- Suction body: Stainless steel AISI 304
-
Manual PDFDownload
-
data sheet PDFDownload
