GWS Pressure Wave

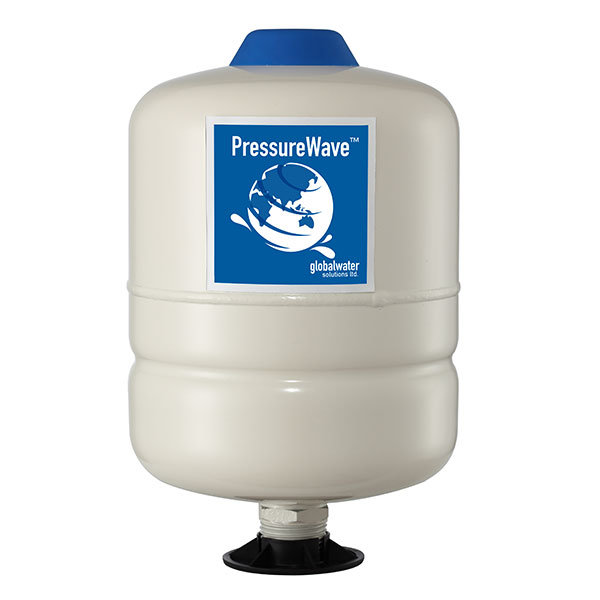

GWS 3 litre accumulator PWB-3LX
In stock
- Established 1975
- Trusted by thousands of customers
Cold water accumulator vessels.
Maintenance free and WRAS approved.
- Diaphragm design
- Patened stainless steel water connection
- Virgin polypropylene liner
- Condensation reducing design
- Two-part polyurethane, epoxy primed paint finish
- Max working pressure 10 bar
- Factory pre-charge 1.4 bar
- Max temp 90 degree C
More about this product
With a chlorine resistant 100% butyl diaphragm, incorporating a precision molded polypropylene liner the GWS series tanks offer superior air and water separation.
The CAD-2 diaphragm and liner assembly containing drawdown water are sealed together with a positive lock internal clench ring. An ‘air buffer’ prevents the water chamber from being in contact with the tank wall in order to minimize condensation issues.
Constructed with FDA compliant high-grade butyl and polypropylene, the diaphragm assembly seals water in a true non-corrosive chamber. The air chmaber is sealed with fixed o-ring and closed cell foam which will ensure years of leak free operation and eliminate the need for regular servicing.
The exterior comprises a two-part polyurethane paint finish over an epoxy undercoating which guarantees hundreds of hours of UV and salt spray protection.
All GWS products are quality tested throughout the production process to ensure their structural integrity.
Accumulators are not a new concept and have been used in many applications worldwide such as ships, aircraft, farms and well as commerical pump sets.
Uses –
- 1 to 2 bedroom house – 60 litre,100 litre or 200 litre
- 2 to 3 bedroom thouse – 200 litre, 250 litre or 300 litre
- 3 bedrooms and above – 300 litre or 450 litre
-
data sheet PDFDownload
-
manual PDFDownload
