Mainsboost Flomate
Stuart Turner Mainsboost Flomate MBF 100-1-15 46635
In stock
- Established 1975
- Trusted by thousands of customers

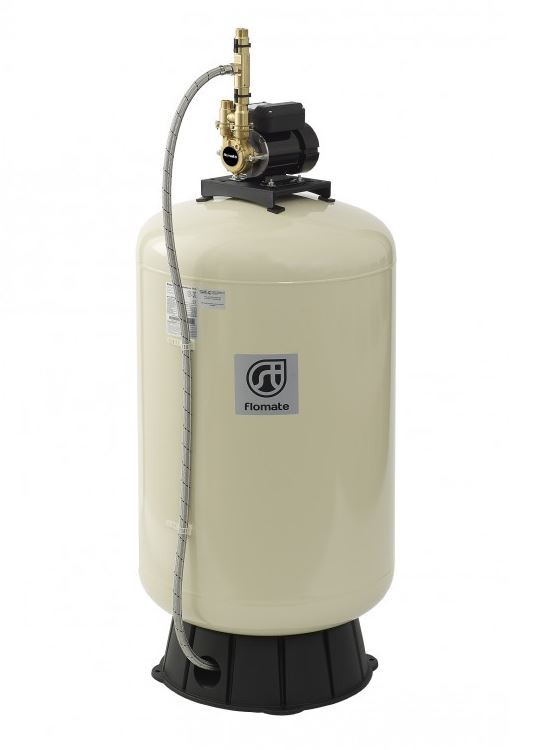

Stuart Turner Mainsboost Flomate MBF 100
Mainsboost Flomate MBF 100 is suitable for larger properites with multiple bathrooms and outlets.
Designed to sit within a typical kitchen 600mm larder style cupboard it will deliver up to 18 litres/min flow at 3.2 bar pressure, to multiple outlets with the property, up to the preset cut-in limit of the 80 litre pressure vessel. at which time the system will deliver 12 litres/minute until demand ends and the pressure vessel recharges.
Each Unit is supplied with a comprehensive Upstream line-in kit (ULK) featuring 15mm pipe diameter fittings.
More about this product
Technical Specification –
General –
- Product code – 46635
- Gurantee – 3 years
- WRAS approval – 1412081
Features –
- Pump type – Peripheral
- Mechanical seal – EPDM/PTFE
- Flexible hoses – 2
- Diaphragm tank size – 100 litre
- Diaphragm tank water capacity –Â 50 litre
Performance –
- Max Head (closed valve) – 3.2bar
- Max flow – 18 l/min
- Max ambient temp – 40 degrees C
- Min/Max water temp – 4/35 degrees C
- Flow switch sensitivity – 0.6 l/min
Connections –
- G 3/4 male
Flexible hoses –
- G 3/4 female x 15mm push in, 200mm long
Electrical –
- 230v ac/1ph/50hz
- 1.7 amps
- 365 watts
- Fuse – 5 amps
- 1.5m power cable
-
unvented systems PDFDownload
-
data sheet PDFDownload
-
dimensions PDFDownload
-
installation PDFDownload
-
brochure PDFDownload
