Salamander TankBoost CAT 5 TNK-C5
Salamander TankBoost 200l CAT 5 TNK-200-SUBC5
In stock
- Established 1975
- Trusted by thousands of customers

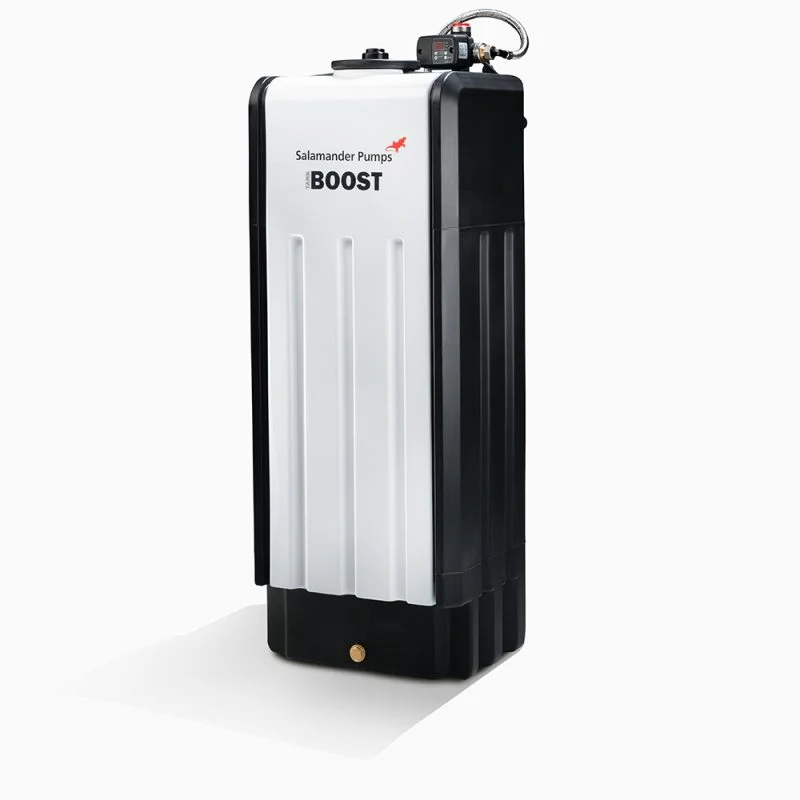

The Salamander TankBoost 200l CAT 5 is an all-in-one unit, with a water storage tank with a type AB air gap and an integrated submersible pump included in the system. It’s a great choice for boosting both flow and pressure in commercial entities, in mains-fed systems such as those with a combination boiler or unvented cylinder. The use of a type AB air gap makes this product suitable for use with hazardous fluids, as it is protected against backflow and therefore limits contamination.
More about this product
The Salamander TankBoost 200l CAT 5 offers simultaneous boosting across multiple outlets, for increased water pressure up to 3.0 Bar, and water flow up to 80l/min. It’s suitable for mains-fed commercial entities, and will improve the output of appliances from toilets and wash basins to body jets, drench shower heads, and even your washing machine or dishwasher.
The inclusion of the type AB air gap with weir overflow prevents the water from the tank going back into the mains water supply. This also makes the TankBoost CAT 5 an ideal option for companies handling fluids that pose a serious health hazard.
Additional water storage units are available as required, if you need to increase capacity.
- Up to 3.0 Bar pressure
- Up to 80l/min flow
- Simultaneous boosting on multiple floors
- Suited to a wide variety of appliances
- Features a water storage tank, type AB air gap with weir overflow, and integrated submerged pump

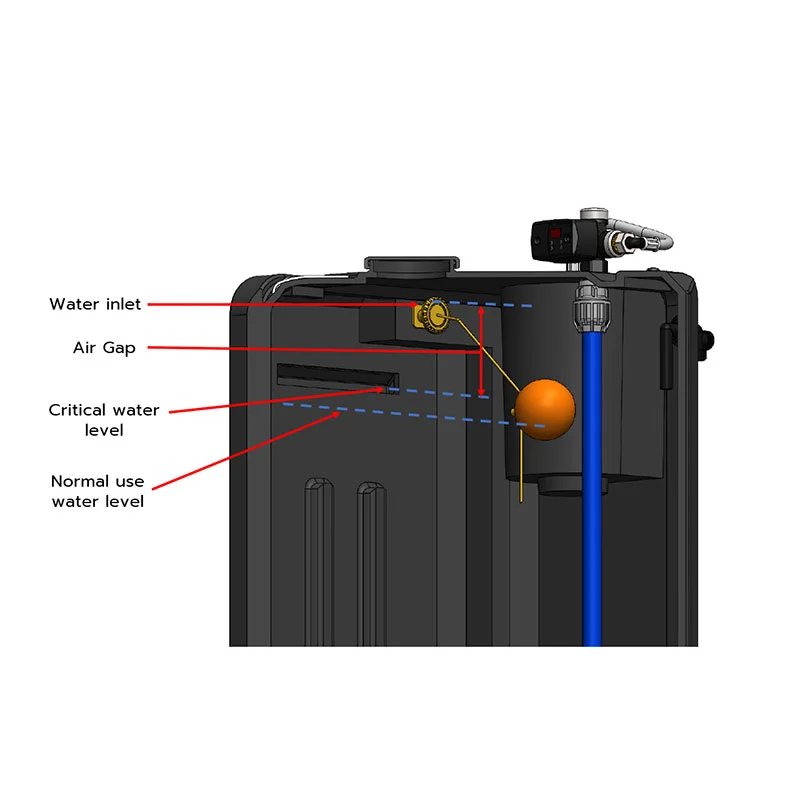

- Weir air gap (Type AB) is needed to stop contaminated water mixing with the mains water, and sits directly below the water discharge point
- This means the system can deal with Fluid Category 5, stopping hazardous fluid contaminating the mains
- Pump enclosure protection: IPX8
- Warranty: 2 years
- Noise rating: 44.8 dBA
- Tank size: 200l

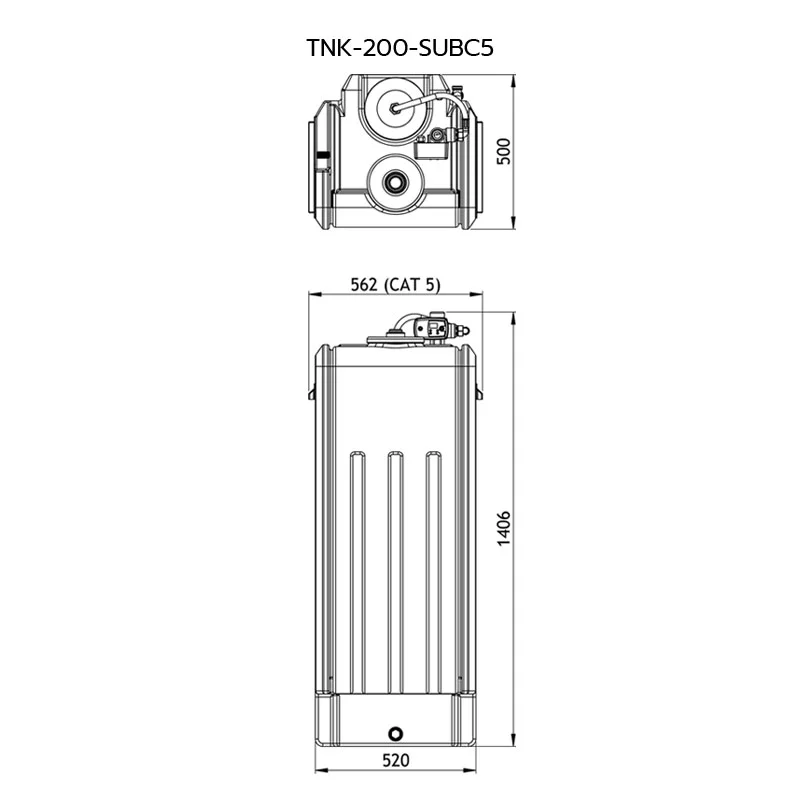

- Dimensions: 1406mm x 562mm x 500mm
- Empty weight: 48.7kg
- Filled weight: 248.7kg
- Power supply: 230V, 50Hz
- Current (full load): 4.2A
- Power consumption: 730W
- Cable length: 8m (plug not supplied)
- Fuse rating: 5A
- Inlet connection: 1/2” BSP Male
- Outlet connection: 1” BSP Female
- Maximum pressure: 3 Bar/300kPa
- Maximum flow rate: 80lpm
- Water temperature: 4°C – 20°C
- Pressure vessel: 8L Vessel with 1.5 Bar Air Pre-Charge
