Grundfos accumulator Vessels
100 litre accumulator vertical Grundfos GT-H-100-V 97527968
In stock
- Established 1975
- Trusted by thousands of customers
GT-H-100 PN10 G1 V

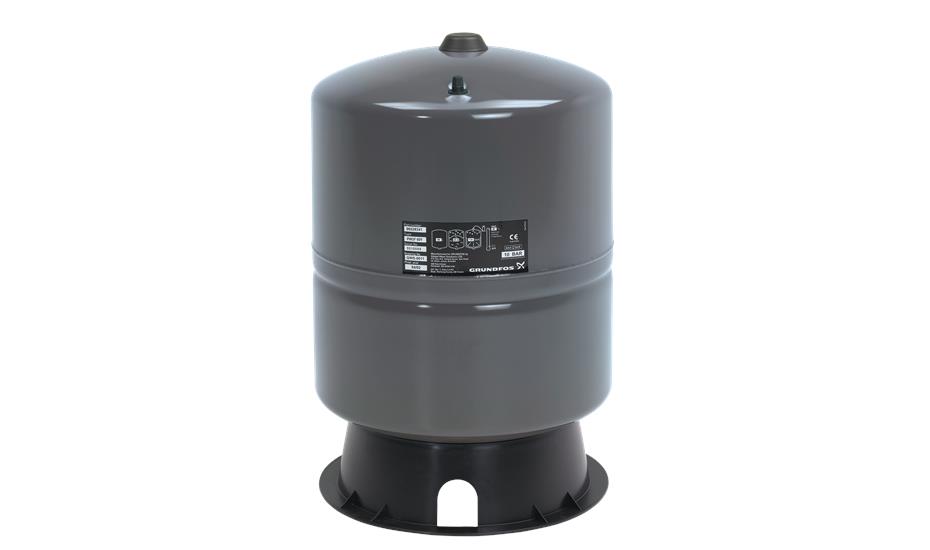

Grundfos GT-H-100 PN10 G1 V is a Diaphragm pressure tank, with a capacity of 100.0 l and Vertical installation. The tanks are approved for drinking water. The GT-H-100 PN10 G1 V is designed for a maximum operation pressure of 10 bar and a maximum liquid temperature of 90 °C.
The tank is a steel pressure tank with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for superior air and water separation.
A pressure tank ensures controlled pressure in the water supply and thereby limits the switching frequency of the pump in case of low water consumption or leakage loss. The result is increased comfort in your installation by limiting the start/stop frequency of your pump, and it increases system comfort by compensating for pressure drops when a tap is opened, while reducing problems with water hammer in the pipework.
More about this product
| Liquid: | |
| Maximum liquid temperature: | 90 °C |
| Technical: | |
| Membrane type: | Diaphragm |
| Materials: | |
| Material: | Carbon steel / Polypropylene |
| Installation: | |
| Maximum operating pressure: | 10 bar |
| Size: | 100.0 |
| Others: | |
| Net weight: | 18.2 kg |
| Gross weight: | 20.6 kg |
| Applicat. typ: | Standard |
| Danish VVS No.: | 398255100 |
| Product name: | GT-H-100 PN10 G1 V |
| Product No: | 97527968 |
| EAN number: | 5700317812246 |
| Technical | |
|---|---|
| Membrane type: | Diaphragm |
| Materials | |
|---|---|
| Material: | Carbon steel / Polypropylene |
| Installation | |
|---|---|
| Maximum operating pressure: | 10 bar |
| Pre-pressure: | 1.9 bar |
| Size: | 100.0 |
| Liquid | |
|---|---|
| Maximum liquid temperature: | 90 °C |
| Others | |
|---|---|
| Net weight: | 18.2 kg |
| Gross weight: | 20.6 kg |
| Applicat. typ: | Standard |
| Danish VVS No.: | 398255100 |
-
data sheet PDFDownload
