Wilo Yonos Maxo Z PN6/PN10
Wilo Yonos MAXO-Z 25/0,5-7 PN10 180mm – 2175538
In stock
- Established 1975
- Trusted by thousands of customers

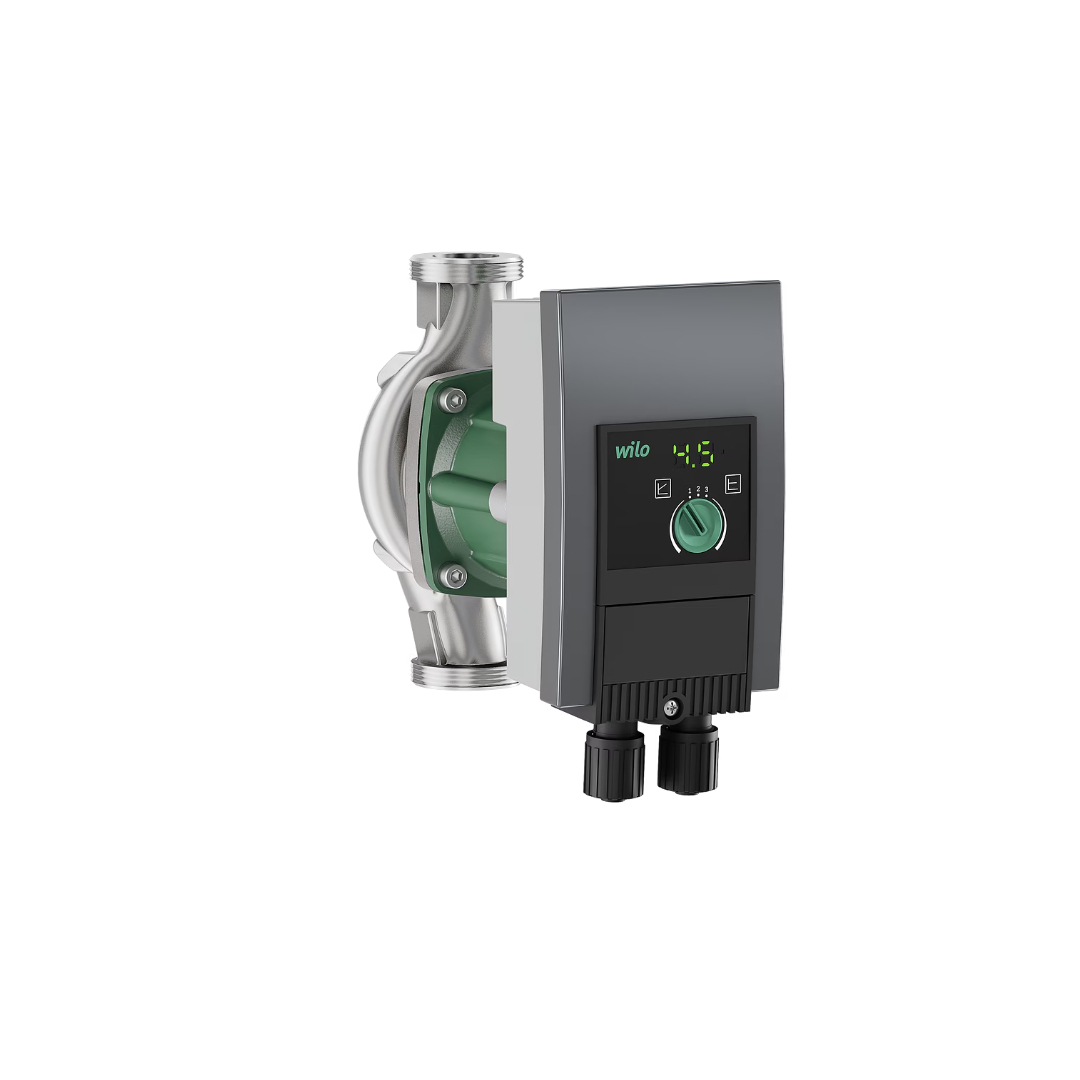

High-efficiency pump Wilo-Yonos MAXO-Z
electronically controlled,
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.
Standard-equipped with:
Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
3 speed stages (n = constant)
LED for setting the setpoint and displaying error messages
Electrical connection with the Wilo plug
Fault signal light and contact for collective fault signal
For flange-end pumps – flange versions:
Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
More about this product
Wilo Yonos MAXO
- Pump connection – G 1 1/2
- Port to port – 180mm
- Max operating pressure – 10 bar
- Weight – 5.0 kg
- Part number – 2175538
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free for all orders except for some low cost/low margin items where standard delivery is £6.75. Some difficult to transport goods also have a varying carriage charge applied.
Please contact us for the estimated standard delivery times of the products that we have in stock, either by calling 01473 719950, or by dropping us an email at info@anglianpumping.com.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £15.00 + vat delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
