Wilo Yonos MAXO Flanged PN10

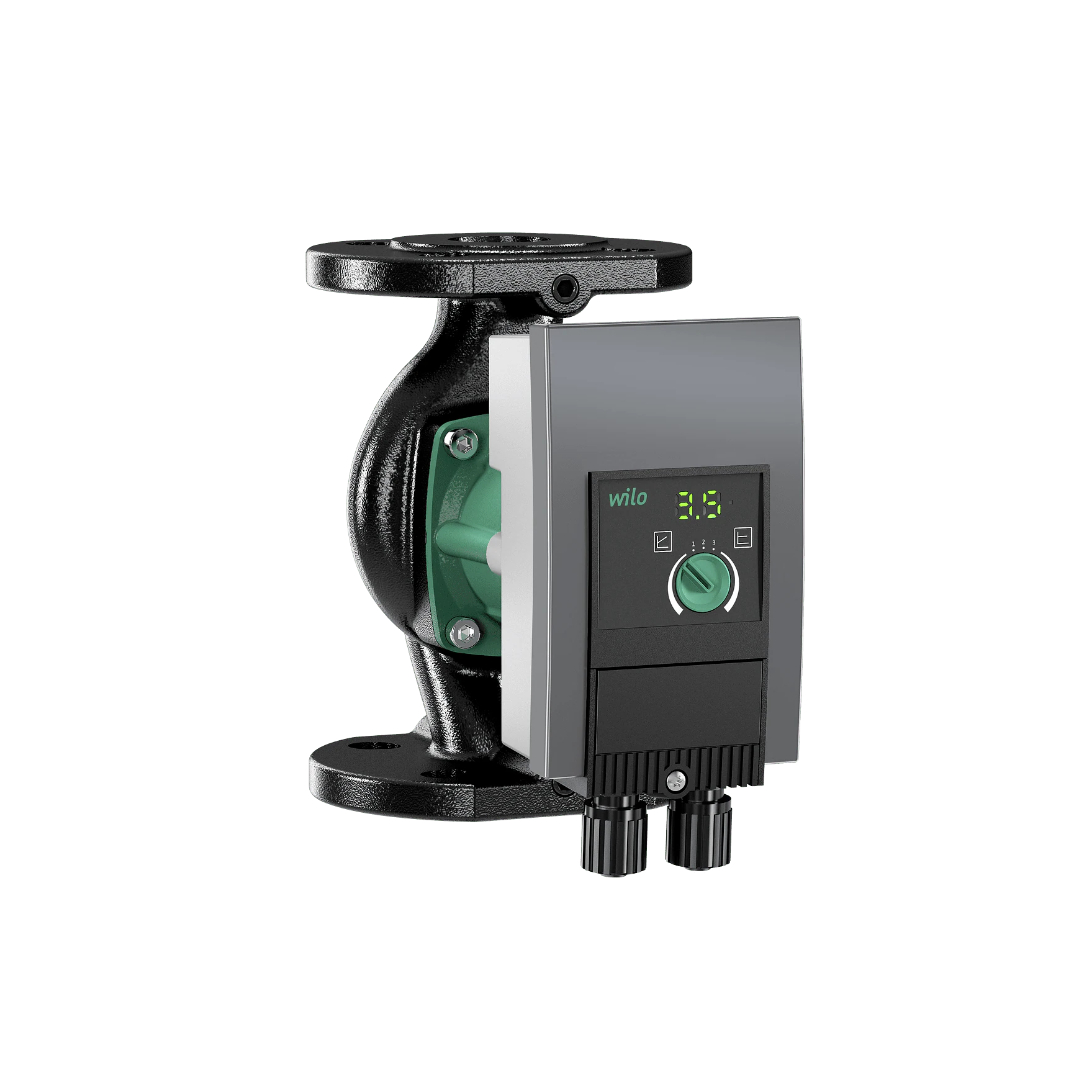

Wilo Yonos MAXO 65/0,5-12 DN65 340mm 2120654
In stock
- Established 1975
- Trusted by thousands of customers
Wilo Yonos MAXO Flanged
Design Type –
Glandless circulation pump with threaded connection or flanged connection. EC motor with power adjustment.
Application –
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial systems.
More about this product
Your advantages
LED display provides complete transparency of set delivery head, speed stage or possible errors
Simple adjustment over three speed stages when replacing an uncontrolled standard pump
Easier electrical connection using the Wilo plug
System availability ensured via collective fault signal
Compact design and proven ease of use
Construction
Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.
Application
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.
Equipment/function
Manual functions
Setting the operating mode
Setting of pump output (delivery head)
Setting the speed stages
Automatic functions
Infinitely variable power adjustment according to the operating mode
Deblocking function
Soft start
Integrated full motor protection
Signal and display functions
Collective fault signal (potential-free NC contact)
Fault signal light
LED segment display for displaying the delivery head and fault codes
Display of the configured speed stage (C1, C2 or C3)
Wilo Yonos MAXO
- Pump connection – DN65
- Port to port – 340mm
- Max operating pressure – 10 bar
- Weight – 29.3 kg
- Part number – 2120654
-
data sheet PDFDownload
