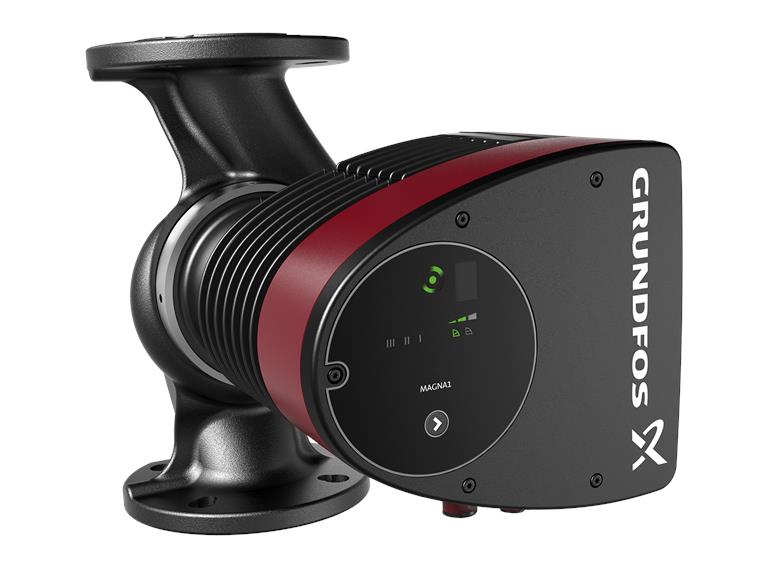

Magna 1 65-120 F 99221374 - Anglian Pumping Services

Our Price £2,313.60 Inc Vat £1,928.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

The MAGNA series of circulator pumps are innovative and intelligent, making use of a permanent magnet-motor designed to achieve maximum efficiency.

The AUTOadapt function means that the pump is automatically set at the most efficient performance curve at all times through regular proportional pressure adjustments. This benefits not only the consulting engineers, who can rest assured that the pumps meet performance specifications without being oversized or overpriced, but also the installers, who can be safe in the knowledge that there will be no need for a follow up manual adjustment.

Full Description

More about this product

Full Description

The Grundfos Magna 1 can be used in a number of different hot water systems, including central heating, mains pumps, mixing loops, heating and air-conditioning. It can also be installed into systems with hot water as the priority, with an external signal forcing the pump to operate according to the maximum curve, i.e. in solar-heating systems.

The design, which is specifically aimed at optimising energy efficiency, has led to the MAGNA series obtaining a class ‘A’ rating in the European energy labelling scheme.

The Grundfos MAGNA 1 is reliable and easy to install with a simply plug-and-pump connection, and contains a number of standout features:

The pumps are provided with both threaded and flange connections in order to achieve easy installation into both new and existing systems.
The rotor used makes use of permanent-magnet technology designed to generate more energy savings than any other speed-controlled circulator pump.
Extensive 3-D testing and in-depth simulations means that the MAGNA pump housing and impeller are designed to optimally fit the other, reducing unnecessary energy consumption.
Sophisticated electronics are protected by air cooling, ensuring that the pump can continually and reliably operate.
The Magna 1 interface is as simple and user-friendly as it could be, with the operating panel showing only the most essential performance parameters, making it very easy to read. Pump performance can be adjusted manually with a simple button press.
