Grundfos Magna 1 230v
Grundfos Magna1 32-40 99221233
In stock
- Established 1975
- Trusted by thousands of customers

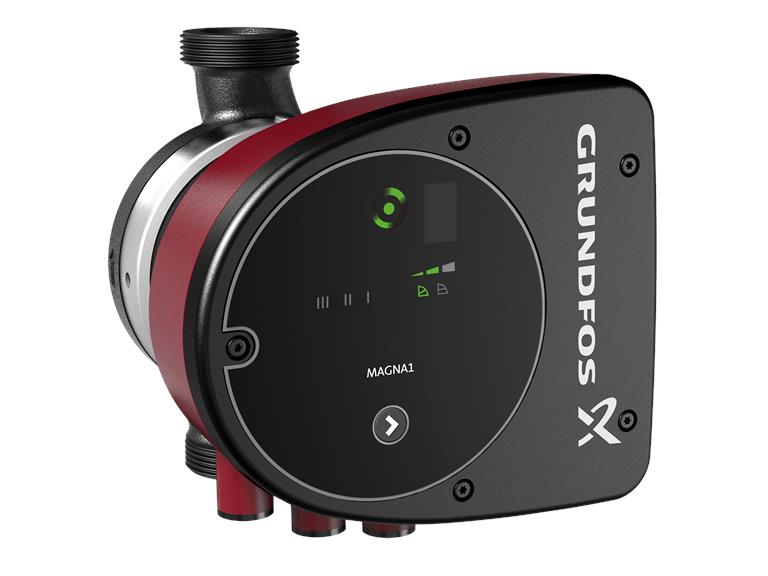

MAGNA1 32-40
he MAGNA1 by Grundfos is the straightforward solution for efficient and reliable performance. Ideal for replacing older circulators, this model aligns with EuP 2015 regulations, delivering substantial energy savings and dependable operation. Designed to meet basic system control and monitoring needs, the MAGNA1 ensures effective circulation with minimal effort.
Key Features:
- Ease of Monitoring: Equipped with a fault relay for quick diagnostics, ensuring system reliability and peace of mind.
- Remote Control Capability: Digital start/stop input allows for seamless remote pump management.
- Twin Pump Functionality: Wireless connection enables continuous operation and reduced downtime in twin-head setups.
- Energy Efficiency: Compliant with the highest standards, offering significant savings on electricity.
- Low Maintenance: Features a canned-rotor design, eliminating the need for regular servicing.
- Simple User Interface: Streamlined setup and operation for a hassle-free experience.
Applications:
The MAGNA1 is versatile and well-suited for a wide range of tasks, including:
- Heating Systems: Main pump, mixing loops, and heating surfaces.
- Cooling Systems: Air conditioning surfaces, ground source heat pump systems, and smaller chillers.
With its compact design, energy efficiency, and user-friendly interface, the MAGNA1 32-40 is the dependable choice for residential, commercial, and industrial circulation needs.
More about this product
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -10 .. 110 °C |
| Liquid temperature during operation: | 60 °C |
| Density: | 983.2 kg/m³ |
| Technical: | |
| TF class: | 110 |
| Approvals on nameplate: | CE,VDE,EAC,CN ROHS,WEEE |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-200 | |
| ASTM A48-200B | |
| Impeller: | PES 30%GF |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection: | G 2″ |
| Pressure rating: | PN10 |
| (@): | 180 mm |
| Electrical data: | |
| Power input – P1: | 9 .. 73 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 230 V |
| Maximum current consumption: | 0.09 .. 0.59 A |
| Enclosure class (IEC 34-5): | X4D |
| Insulation class (IEC 85): | F |
| Others: | |
| Energy (EEI): | 0.20 |
| Net weight: | 4.38 kg |
| Gross weight: | 4.78 kg |
| Shipping volume: | 0.013 m³ |
| Finnish: | LVI NO 4615304 |
Specifications
| Product name | MAGNA1 32-40 |
| Product No | 99221233 |
| EAN number | 5712608942068 |
| Technical | |
| Head max | 40 dm |
| TF class | 110 |
| Approvals on nameplate | CE,VDE,EAC,CN ROHS,WEEE |
| Model | C |
| Materials | |
| Pump housing | Cast iron |
| Pump housing | EN-GJL-200 |
| Pump housing | ASTM A48-200B |
| Impeller | PES 30%GF |
| Installation | |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Pipe connection | G 2″ |
| Pressure rating | PN10 |
| (@ | 180 mm |
| Liquid | |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 110 °C |
| Liquid temperature during operation | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
| Power input – P1 | 9 .. 73 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Maximum current consumption | 0.09 .. 0.59 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Others | |
| Energy (EEI) | 0.20 |
| Net weight | 4.38 kg |
| Gross weight | 4.78 kg |
| Shipping volume | 0.013 m³ |
| Finnish | LVI NO 4615304 |
-
data sheet PDFDownload
