Grundfos Magna 1 230v
Grundfos Magna1 25-80 99221213
In stock
- Established 1975
- Trusted by thousands of customers

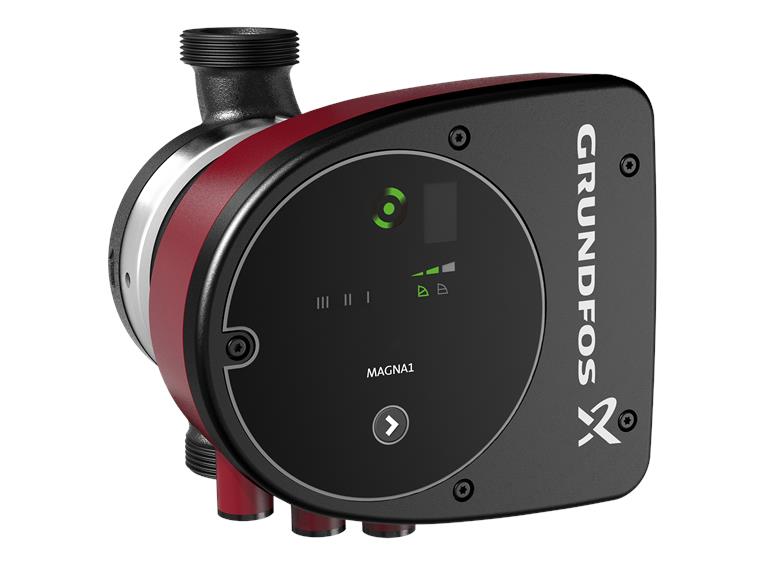

MAGNA1 25-80
The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality. The ideal choice for basic performance needs in applications where basic system control and monitoring is desired.
- Monitoring via the fault relay, ensuring peace of mind
- Digital start/stop input available for remote pump control
- Continuous operation and reduced downtime with the wireless twin pump function (available on twin-head pumps)
- High energy efficiency resulting in substantial savings on electricity
- Easy setup and operation via the simple user interface
- No maintenance due to the canned-rotor type design.
MAGNA1 is the simple and efficient choice for most applications including
- Heating
- Main pump
- Mixing loops
- Heating surfaces
- Cooling
- Air conditioning surfaces
- Ground source heat pump systems
- Smaller chiller applications
Alternate Model –
More about this product
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -10 .. 110 °C |
| Liquid temperature during operation: | 60 °C |
| Density: | 983.2 kg/m³ |
| Technical: | |
| TF class: | 110 |
| Approvals on nameplate: | CE,VDE,EAC,CN ROHS,WEEE |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-200 | |
| ASTM A48-200B | |
| Impeller: | PES 30%GF |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection: | G 1 1/2″ |
| Pressure rating: | PN10 |
| (@): | 180 mm |
| Electrical data: | |
| Power input – P1: | 9 .. 128 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 230 V |
| Maximum current consumption: | 0.09 .. 1.03 A |
| Enclosure class (IEC 34-5): | X4D |
| Insulation class (IEC 85): | F |
| Others: | |
| Energy (EEI): | 0.20 |
| Net weight: | 4.38 kg |
| Gross weight: | 4.78 kg |
| Shipping volume: | 0.013 m³ |
| Finnish: | LVI NO 4615231 |
Specifications
| Product name | MAGNA1 25-80 |
| Product No | 99221213 |
| EAN number | 5712608941863 |
| Technical | |
| Head max | 80 dm |
| TF class | 110 |
| Approvals on nameplate | CE,VDE,EAC,CN ROHS,WEEE |
| Model | C |
| Materials | |
| Pump housing | Cast iron |
| Pump housing | EN-GJL-200 |
| Pump housing | ASTM A48-200B |
| Impeller | PES 30%GF |
| Installation | |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Pipe connection | G 1 1/2″ |
| Pressure rating | PN10 |
| (@ | 180 mm |
| Liquid | |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 110 °C |
| Liquid temperature during operation | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
| Power input – P1 | 9 .. 128 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Maximum current consumption | 0.09 .. 1.03 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Others | |
| Energy (EEI) | 0.20 |
| Net weight | 4.38 kg |
| Gross weight | 4.78 kg |
| Shipping volume | 0.013 m³ |
| Finnish | LVI NO 4615231 |
-
data sheet PDFDownload
