Grundfos TPE2 Cast Iron 230v
Grundfos TPE2 40-240-N 230v 0-2.5 bar 98438348
In stock
- Established 1975
- Trusted by thousands of customers

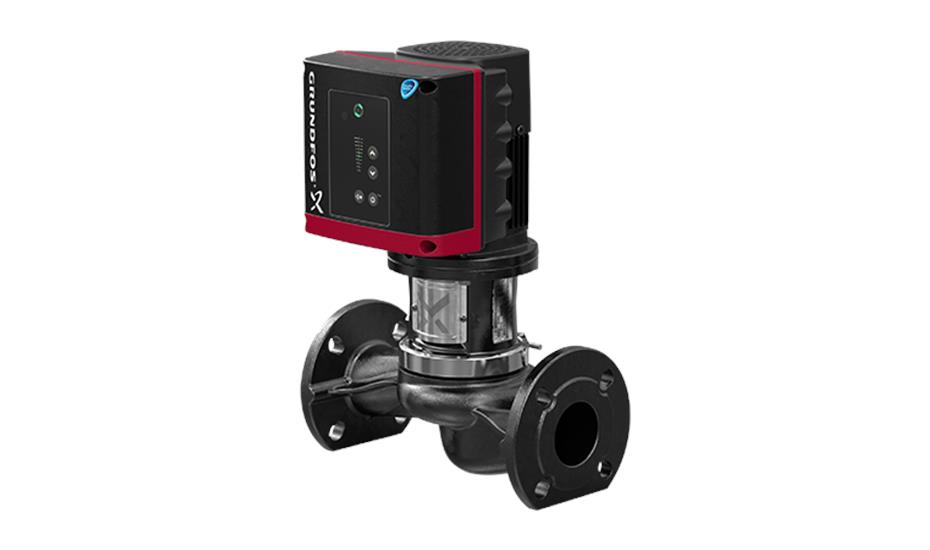

Grundfos TPE2 cast iron 230v single head pump
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
The shaft seal is according to EN 12756. Pipework connection is via PN 6/10 DIN flanges (EN 1092-2 and ISO 7005-2).
The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.
The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
Note –
Transducers are not included on the price but are optional extras listed. Selected the appropriate transducer according to the size indicated.
More about this product
Suitable for:
- Heating systems
- Air conditioning and cooling systems
- Domestic water systems
- Ground-source heat pump systems
- Solar heating systems
-
data sheet PDFDownload
