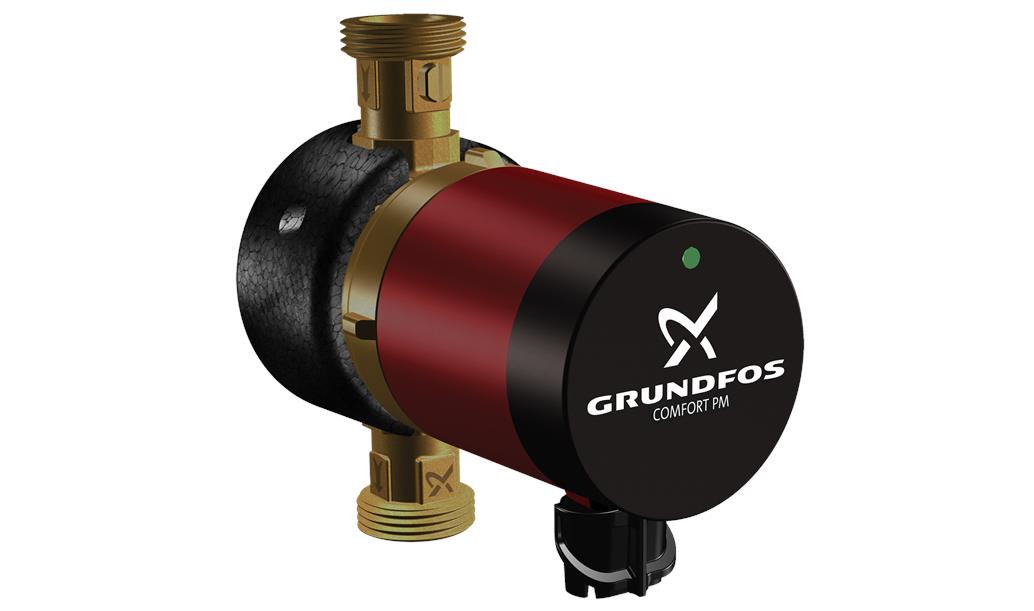

Grundfos Comfort 15-14 BX PM GB 99164486
The Grundfos Comfort PM is designed for recirculation of domestic hot water in single- and two-family houses. It has a lead-free pump housing suitable for potable water and is powered by a high-efficiency single-phase, 12-pole permanent-magnet motor.
Features and benefits:
- Quick and simple electrical installation due to 1,5m cable incl. power plug
- Dry-running detection
- Easy-to-clean and lime-insensitive spheric rotor
- Wearless operation due to liquid-lubricated bearing
- No leakage risk due to a static seal
- Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housings
- Corrosion-resistant lead-free brass pump housing
- No additional motor protection necessary due to integrated motor electronics
- No additional installation costs due to integrated non-return and isolating valve in included fittings
More about this product
Specifications
| Product name | COMFORT 15-14 BX PM GB |
| Product No | 99164486 |
| EAN number | 5712607928476 |
| Technical | |
|---|---|
| Speed no | 1 |
| Head max | 14 dm |
| TF class | 95 |
| Approvals on nameplate | CE,VDE,WEEE |
| Valve | pump with built-in isolating and non-return valves |
| Materials | |
| Pump housing | Brass MS 68 |
| Impeller | Stainless steel, EPDM, PPO, PTFE, Graphit |
| Installation | |
| Maximum operating pressure | 10 bar |
| Type of connection | G |
| Pipe connection | 1 |
| (@ | 140 mm |
| Liquid | |
| Pumped liquid | Water |
| Liquid temperature range | 2 .. 95 °C |
| Liquid temperature during operation | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
| Max. power input | 7 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Current in speed 3 | 0.07 A |
| Capacitor size – run | 0.6 µF |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Motor protec | NONE |
| Thermal protec | Impedance protected |
| Others | |
| Net weight | 1.35 kg |
| Gross weight | 1.51 kg |
| Shipping volume | 0.003 m³ |
| Country code | GB |
-
brochure PDFDownload
-
quick guide PDFDownload
-
data sheet PDFDownload
