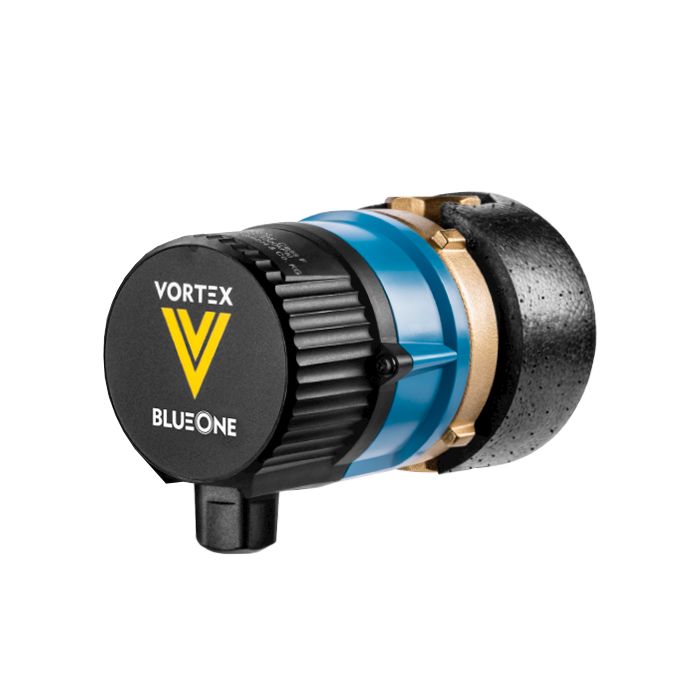

DAB Vortex BWO Hot Water Circulator
DAB Vortex BWO 155V Basic (1 1/4″) Hot Water Circulator 240v 433111001
In stock
- Established 1975
- Trusted by thousands of customers
This hot water circulator pump runs around the clock, though it can be regulated by time if it is connected to an external controller. It is driven by a highly efficient DC motor, while the self-adjusting rotor runs virtually noise free.
These DAB pumps are considered appropriate for the DHW circulation systems of detached and two-family houses, and potentially some small apartment buildings, too, depending on the layout of the existing pipework.
More about this product
- V-pump housing: 1 1/4″ male connection thread; fitting set, with 1/2″ male screw/solder fitting/ø 15 mm female, non-return valve, cut-off valve, insulation shell
- R-pump housing: 1/2″ female connection thread, insulation shell
- Driven by a highly efficient, electronically commutated DC motor
- Voltage transformer is integrated in the module cap for AC operation
- Continuous manual speed adjustment
- Pump runs around the clock
- Spherical motor technology: The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.
