Ebara DWO/I 300 - 400v Centrifugal Pumps

Our Price £890.40 Inc Vat £742.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

Ebara DOW pumps

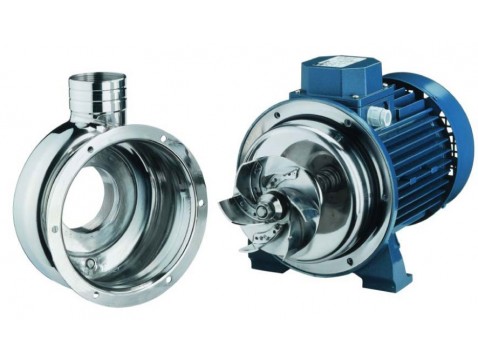

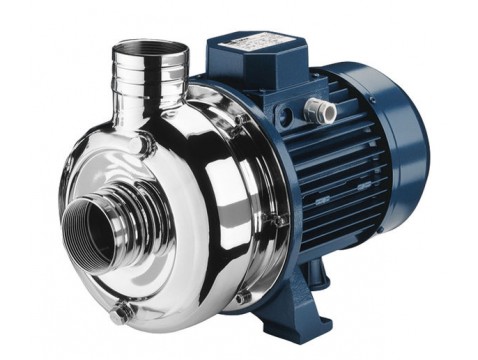

The DWO 300 from Ebara come as end suction centrifugal pumps which are constructed from corrosion resistant stainless steel, with open impellers for liquids with suspended solids.

The DWO 300 centrifugal pump is suitable for a variety of applications, including:

Washing vegetables, meat, fish, molluscs
Industrial washing plants at cycle end
Washing and surface finishing of metal pieces, boxes, washing bottles, vases, glass containers, crates, baskets
Dishwashers, glasswashers, cupwashers for communities
Painting booths
Moving, evacuation, transfer of liquids

The inlet and outlet have a female thread and male hose barbs.

Pump Specifications

Type of liquid: Clean water
Max temp.: 90°C
Max. working pressure: 8 bar
Impeller: Open centrifugal type
Shaft seal type: Mechanical seal
Bearing: Sealed ball bearing
Suction: G2½
Discharge: G2
Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Shaft seal: Ceramic/Carbon/NBR
- Shaft: AISI 304 (part in contact with liquid)
- Bracket: Aluminium
Applicable standard of test: ISO 9906 – Annex A

Motor Specifications

Type: Single phase
No. of poles: 2
Synchronous speed: 3000 min^-1
Insulation class: F
Protection degree: IP55
Power rating: 1.1 ÷ 3 kW, 1.5 ÷ 4 HP
Frequency: 50Hz
Voltage: 230/400 ± 10% V
Over load protection: Provided by the user
Casing material: Aluminium
Base material/motor support: Aluminium
Dimensions of cable entry: PG11 – PG13.5

Full Description

More about this product

Full Description

Open Impeller Centrifugal Electric Pump
DWO/I 300
Code: 1579100004I
Three phase: 230/400V, 50Hz
Weight: 16.9kg

Downloads

data sheet PDF
Download
