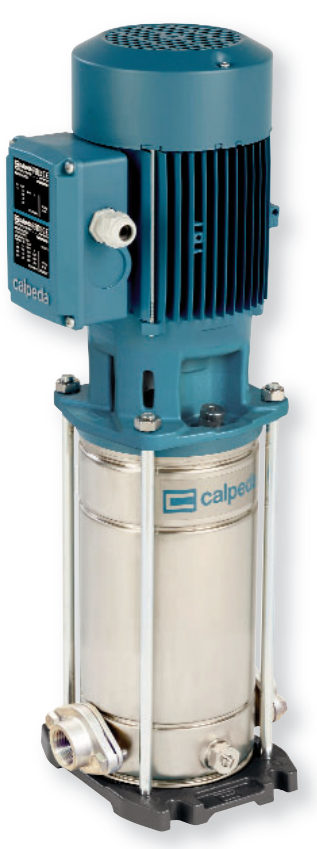

Calpeda MXV-BM 25-306 O Vertical Multistage Pump (1 Phase) 62L40601000

Our Price £850.56 Inc Vat £708.80 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

The Calpeda MXV-BM Vertical Multistage Pump is designed for water supply systems, civil and industrial use, pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses, and sport installations. Clean, non-explosive liquids without solid, filamentary, or abrasive matter are appropriate for use with this pump, so long as they are non-aggressive towards stainless steel.

Full Description

More about this product

Full Description

Close coupled pump with suction and delivery connections of the same diameter and arranged along the same axis (in-line)
Operating conditions:
- Temperature of liquid: from -15 °C to +90 °C
- Operating environment temperature: up to 40 °C
- Maximum permissible pressure in pump casing: 16 bar
- Designed for continuous duty
Motor
- 2-pole induction motor, 50 Hz (n = 2900 rpm)
- MXV-B: three-phase 230/400 V ± 10% up to 3 kW; 400/690 V ± 10% from 3,7 kW
- MXV-BM: single-phase 230 V ± 10%, with thermal protector
- Capacitor inside the terminal box
- Insulation class F.
- Protection IP 54.
All parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosion resistant bearing sleeves lubricated by the pumped liquid
Please note the following information related to this Calpeda series: MXV-BMO models have oval connections / flanges
