Grundfos PM2 96848738
In stock
- Established 1975
- Trusted by thousands of customers
Grundfos Pressure Managers

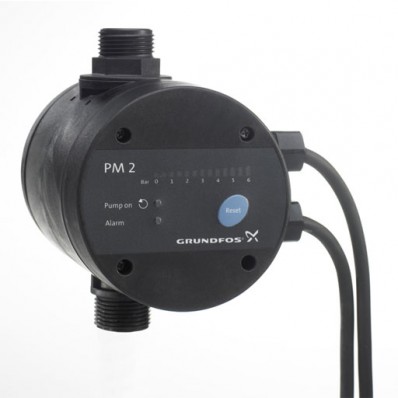

The PM2 AD is a pressure manager for use with the Grundfos JP5 and JP6 booster pumps,CM pumps and SQ 3" borehole pumps.
The PM2 is th all round control solution offering adjustable start 1.5 to 5.5bar. This enables customisation to different types of installations and desired comfort level.
The start pressure is set by means of DIP switches located behind the control panel whereas the current pressure is indicated on the LED display on the front of the PM2. The PM2 starts the pump when the start pressure is reached and the pump keeps running as long as there is a flow.
The PM 2 can be optimised for operation with a external pressure tank by enabling the 1 bar differential function. The function significantly reduces the number of operting hours of the pump installations with pressure tank.
More about this product
- Single phase – 220 to 240v
- Max Current 10A
- Max liquid temp – 40 deg C
- Cut in 1.5bar from 5.5bar in steps of 0.5bar
- Cut out at no flow
Specifications
| Product name: | PM 2 |
| Product No: | 96848738 |
| EAN number: | 5700311918753 |
| Technical | |
|---|---|
| Return valve: | YES |
| Tank volume: | 0.1 l |
| Installation | |
|---|---|
| Maximum ambient temperature: | 50 °C |
| Cut-in pressure: | 1.5 – 5 bar |
| Inlet connect: | G1" |
| Outlet connect: | G1" |
| Inlet thread: | External |
| Outlet thread: | External |
| Pres. Read-out: | YES |
| Liquid | |
|---|---|
| Liquid temperature range: | 0 .. 40 °C |
| Electrical data | |
|---|---|
| P1 max.: | 2000 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 220-240 V |
| I MAX: | 10 A |
| Enclosure class (IEC 34-5): | IP65 |
| Controls | |
|---|---|
| Dry running protection: | YES |
| Others | |
|---|---|
| Net weight: | 1 kg |
| Gross weight: | 1.85 kg |
| Shipping volume: | 0.01 m³ |
| Approvals: | CE,C-TICK,EAC,WEEE |
