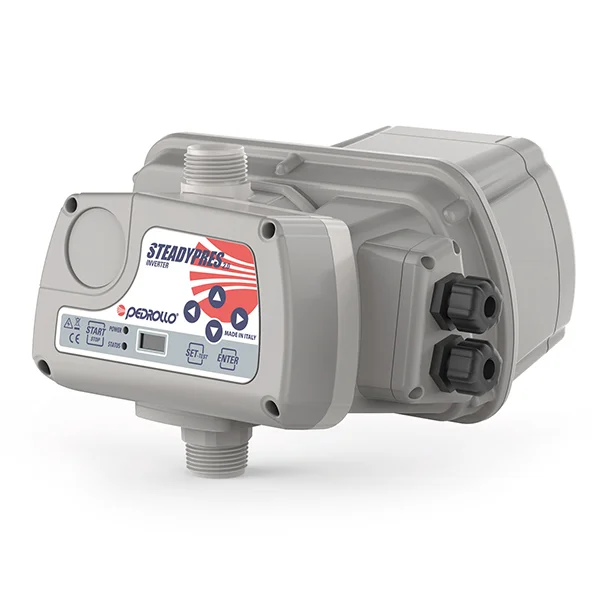

DG Flow STEADY PRES Electronic Variable Speed Pump Controller MM8.5 1PH/1PH 1.1KW

Our Price £837.60 Inc Vat £698.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

The robust STEADY PRES range from DG Flow features electronic variable speed pump controllers with inverter technology for single and multi-pump applications. This pump is a stand-out option on account of its high energy savings, reliable water pressure, and its flow sensor, which is complete with a check valve able to sense flows down to only 2 lt/min.

Full Description

More about this product

Full Description

The STEADY PRES has a technopolymer body suited to potable water, and offers high energy savings as well as very reliable, constant water pressure. Designed for both single and multi-pump operations, this versatile controller boasts key features such as a flow sensor, integrated pressure sensor, and a metallic heat sink with large cooling ribs, in direct contact with the water flow, for that all-important heat dissipation.

Both the installation and servicing of the STEADY PRES are simplified by the two ‘quick release’ union fittings supplied, while a removable connector makes electrical connection similarly safe and easy. Just select the required operating pressure and the rated current of your pumps, and you’ll be ready to go!

Electronic variable speed pump controller
Inverted technology
High energy savings
Technopolymer body
Suited to potable water use
Suited to pumps with flow rates up to 200 litres/min
Input/Output signal board is fitted in the back of the unit and includes connections for:
- RS485 Communication signal for use with multi-pump installations
- Float switch (or another input signal): allows the connection to a level sensor or other switch for remote start-stop signal
- Alarm Output for remote alarm
‘Quick release’ union fittings for simple installation
Removable connector to electrical connection for ease of use
Integrated pressure sensor
Flow sensor, complete with check valve able to sense flows down to only 2 lt/min
Heat dissipation technology for even greater reliability
