DG Flow PRESFLO Pump Controller DG/PF1615/D01115011

Our Price £144.00 Inc Vat £120.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

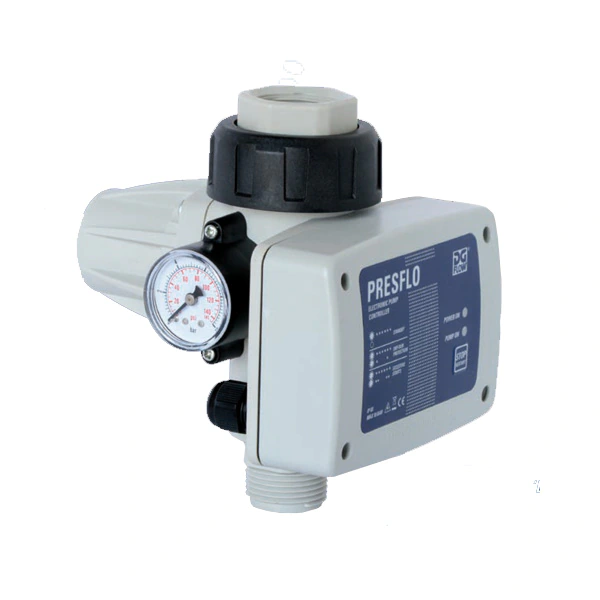

The PRESFLO is a pressure sensing pump controller which will automatically start and stop your pump as required. From the built-in non-return valve and water accumulator to the protection against dry running that this controller offers, it is an elevated substitute for traditional pressure switch/surge tank systems.

Full Description

More about this product

Full Description

This PRESFLO pressure-sensing pump controller automatically starts and stops its pump as required, offering an excellent alternative to traditional pressure switch/surge tank systems. Protection is provided against excessively frequent starts and dry running as part of this controller. Moreover, the design of this controller allows for versatile positioning, whether you’re working vertically or horizontally. Built-in essentials include an easily accessible non-return valve and a water accumulator, in addition to the integrated three piece union.

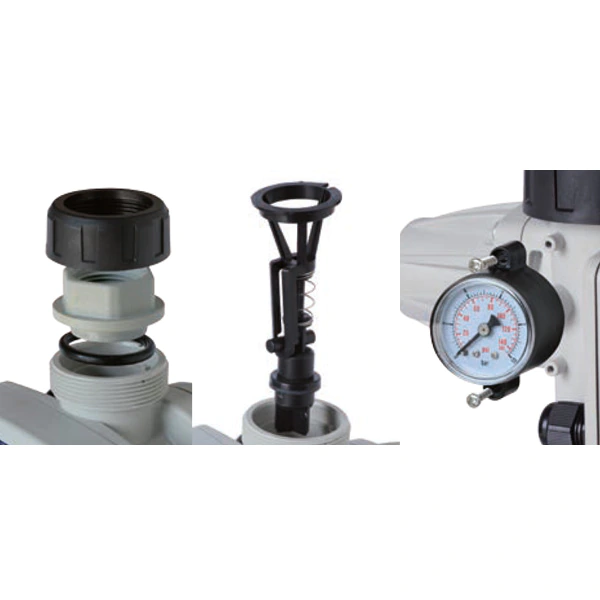

Built-in water accumulator and easy to inspect non-return valve
Integrated three piece union
IP65 – enclosure
Resin-protected PCB
Free positioning – vertically, horizontally, at any angle
Auto reset with protection against excessive starting
This also offers protection against dry running
Pressure gauge is easy to add if you choose to purchase one at a later date (not included)
Max Pump Power: 1.5Kw / 2.0Hp
Start Pressure: 1.5 bar
Max Current: 16A
Water Storage: Spring Membrane
Protections: Dry Run / Frequent Starts
Voltage: 230V
Frequency: 50/60HzConnections: 1″ BSP – MALE INLET – FEMALE OUTLET
Cut-Off Flow Rate: 2 l/min
IP Protection: IP65
Includes both male and female BSP Outlet adaptors
This is the 2015 version, which has different dimensions and connections to the previous model
Weight: 1.65kg
Dimensions: 167mm x 130mm x 168mm

Pump Matching Essential Check

Carefully check the electric and hydraulic features and make sure they comply with those of the pump and the system.

Take particular note of the following information:

The Presflo 1.5 bars start pressure requires a pump head of at least 2.5 bars
The water column between the device and the highest user point must not exceed 15 meters – less 2 meters tolerance = 13 mtrs
